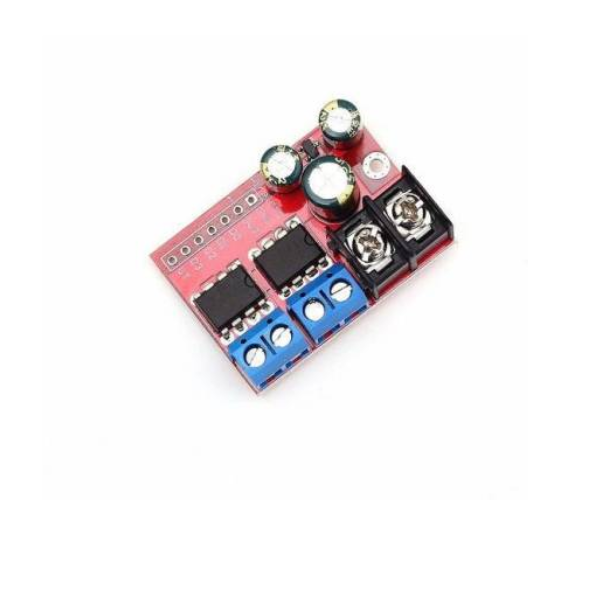

TA6586 based 5A Dual DC Motor 3V-14V Driver Module

Dual H-Bridge DC Motor Speed Controller (3V-14V, 5A)

Precisely Control Your DC Motors

Our versatile dual H-bridge DC motor speed controller allows you to effortlessly control the speed and direction of your DC motors. With its high current output, wide voltage range, and adjustable PWM duty cycle, this controller is perfect for various applications.

Key Features:

• Dual H-Bridge Design: Drive two DC motors or one bipolar stepper motor.
• High Current Output: Delivers a maximum output current of 5A.
• Wide Voltage Input: Compatible with DC voltages ranging from 3V to 14V.
• Adjustable PWM Duty Cycle: Precisely control motor speed with a PWM duty cycle ranging from 1% to 100%.
• Low Standby Current: Consumes minimal power when idle.
• Compact Design: Small and lightweight for easy integration into your projects.

Applications:

• Robotics: Control motors in robotic systems.
• Automation: Drive machinery and equipment.
• DIY Projects: Power various DC motors for your creations.

Specifications:

• Output Current: 0-5A
• PWM Duty Cycle: 1%-100%
• Signal Input Voltage: 2.2-6V

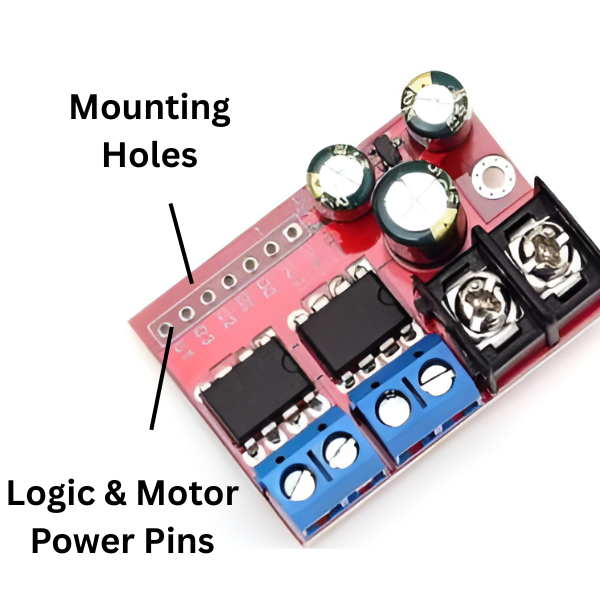

• Mounting Hole Diameter: 2mm
• Weight: 14g

Package Includes:

• 1 x Dual H-Bridge DC Motor Speed Controller

Take control of your DC motors with our reliable and easy-to-use speed regulator.

DATA SHEET AND USECASE

Key Features:

• Operating Voltage: 3V to 14V
• Maximum Current: 5A per channel
• Control Inputs: Compatible with 2.2V to 6.0V logic signals
• Standby Current: Approximately 10µA
• Operating Temperature: -20°C to 85°C
• Dimensions: 38mm x 27mm x 18mm with 2mm mounting holes
