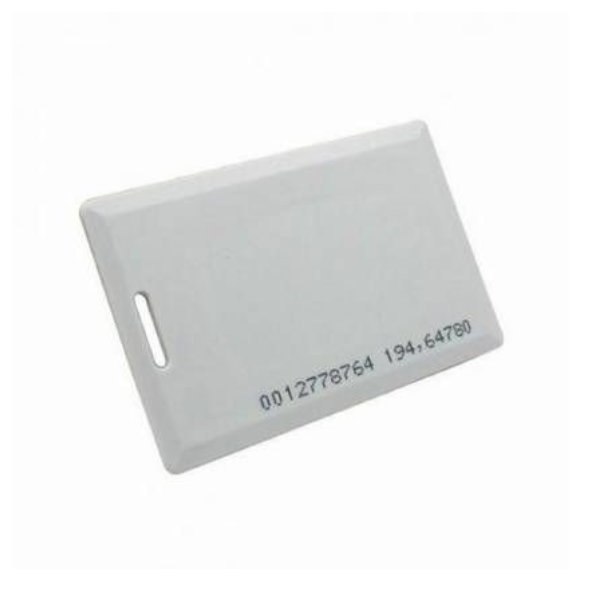

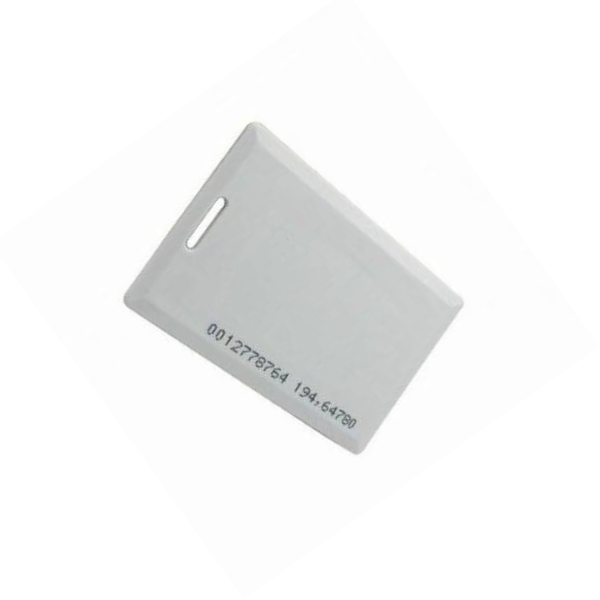

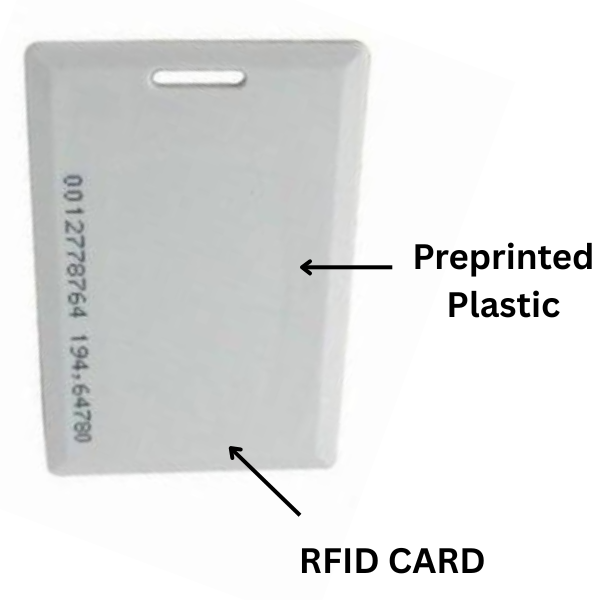

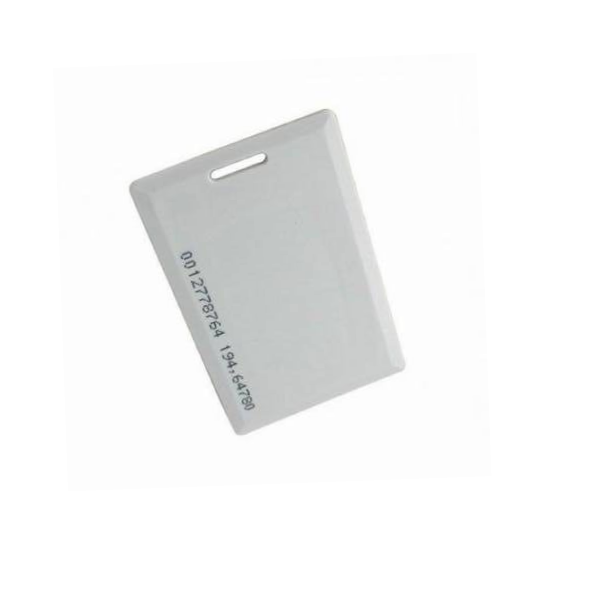

RFID Clamshell Card/TAG 125kHz (PACK of 4)

This pack contains four RFID clamshell cards/tags operating at 125kHz. These cards are commonly used for access control, time attendance, identification, and other applications requiring contactless identification. The clamshell design provides added durability and protection for the embedded RFID chip. They are typically pre-programmed with a unique ID, making them ready for use in compatible systems.

Key Features:

• Frequency: 125kHz, a common low-frequency RFID standard.
• Clamshell Design: Provides robust protection for the RFID chip, making the cards more durable and resistant to damage.
• Contactless Technology: Enables fast and convenient identification without physical contact.
• Pre-programmed: Each card comes with a unique identification number (UID), simplifying integration with existing systems.
• Pack of 4: Offers a cost-effective solution for multiple applications or replacements.
• Durable Material: Made from sturdy plastic for long-lasting performance.
• Wide Compatibility: Works with a variety of 125kHz RFID readers and systems.

Applications:

• Access Control: Secure entry to buildings, offices, gyms, and other restricted areas.
• Time and Attendance: Tracking employee work hours and attendance.
• Identification: Identifying individuals for membership programs, loyalty programs, or event access.
• Library Management: Tracking books and other borrowed items.
• Parking Systems: Automated access to parking garages and lots.

Specifications:

• Frequency: 125kHz
• Card Type: Clamshell
• Material: Plastic
• Dimensions:  Approximately 85mm x 54mm x 5mm
• Memory: Read-only
• Quantity: 4 cards/tags per pack

DATA SHEET AND USECASE

Key Specifications:

• Material: Constructed from robust materials such as ABS or PVC, ensuring resistance to physical wear and environmental factors.
• Dimensions: Standard size is approximately 85.6 mm x 54 mm x 1.8 mm, similar to a credit card but slightly thicker.
• Weight: Typically around 9 grams.
• Operating Frequency: 125 kHz, compatible with various low-frequency RFID systems.
• Chip Compatibility: Supports chips like EM4100, EM4200, TK4100, and T5577, among others.
• Reading Distance: Depending on the reader and environment, the range can vary from a few centimeters up to 130 cm.

• Environmental Resistance: Designed to withstand exposure to water, saltwater, alcohol, oil, 10% HCl, and ammonia.

• Operating Temperature: Typically ranges from -40°C to +85°C.
