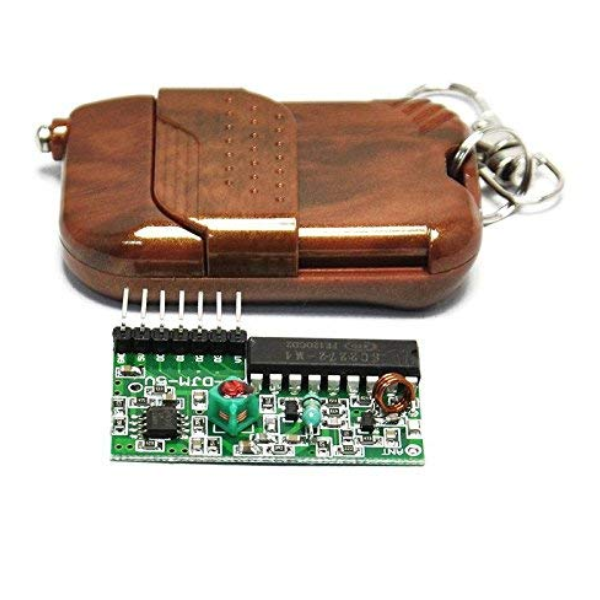

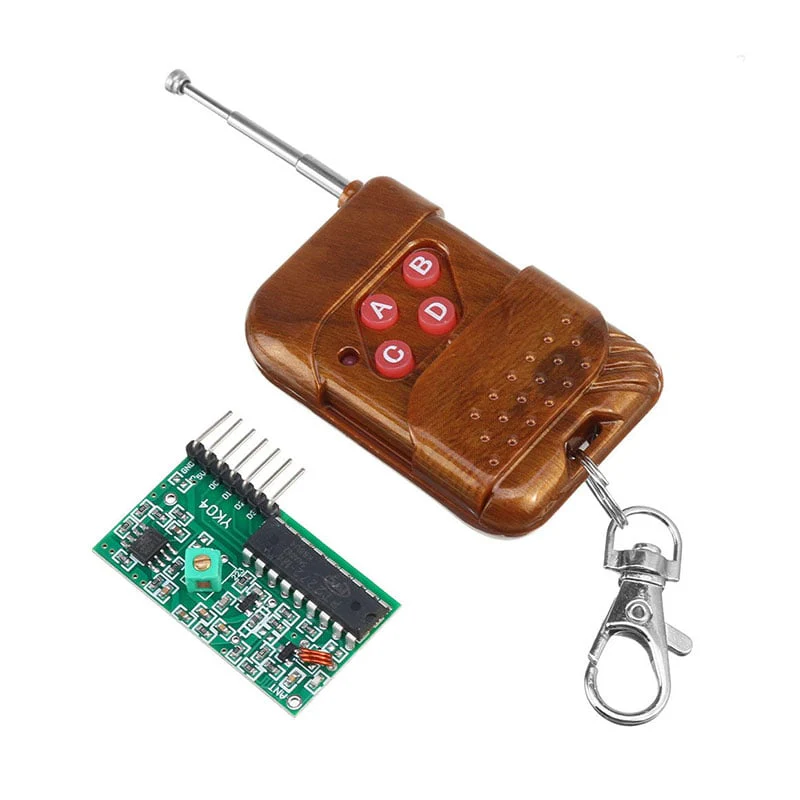

Wireless RF Tx/Rx Remote control 315 MHz IC2262/2272 4 Channel (Mode: Non Locking)

Description:

This module provides a convenient and reliable wireless remote control solution, utilizing the IC2262/2272 integrated circuits. It operates at a frequency of 315 MHz and offers four channels for controlling various devices or functions.

Key Features:

• Wireless Control: Enables remote operation of devices without physical connection.
• 4-Channel Functionality: Provides flexibility to control multiple functions or devices simultaneously.
• 315 MHz Frequency: Operates on a widely used RF frequency for reliable transmission.
• Easy-to-Use: Simple setup and operation, making it suitable for various projects and applications.
• Compact Design: Small and lightweight, ideal for portable and space-constrained applications.

Applications:

• Home Automation: Control lights, appliances, or security systems from a distance.
• Remote-Controlled Devices: Operate models, toys, or other devices wirelessly.
• Industrial Automation: Control machinery or equipment remotely.
• Security Systems: Trigger alarms or activate security features.
• DIY Projects: Create custom wireless control systems for various applications.

Specifications:

• Frequency: 315 MHz
• Channels: 4
• Transmission Range: Typically 30-50 meters
• Power Supply: Transmitter: DC 12V, Receiver: DC 5V
• Modulation: ASK
• Dimensions: Transmitter and Receiver  Approximately 50mm x 30mm x 15mm
• Package: Typically includes transmitter and receiver modules with antennas.

DATA SHEET AND USECASE

Key Specifications:

• Transmitter:

  • Operating Voltage: 12V DC
  • Operating Current: 10mA at 12V
  • Radiated Power: 10mW at 12V
  • Modulation Mode: ASK (Amplitude Shift Keying)
  • Transmission Frequency: 315 MHz
  • Transmission Distance: 20m to 50m in open field conditions

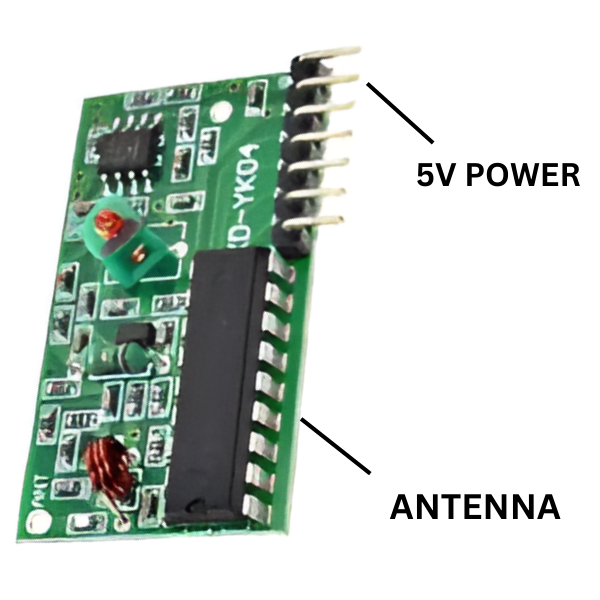

• Receiver:

  • Operating Voltage: 5V DC
  • Sensitivity: -98 dBm
  • Output Channels: 4
  • Dimensions: 40 x 23 x 5 mm
