2S 18650 Li-po Lithium Battery Capacity Indicator Module

The 2S 18650 Li-po Lithium Battery Capacity Indicator Module is a versatile and efficient device designed to monitor the remaining capacity of a 2-cell lithium-ion polymer (Li-Po) battery pack. It provides accurate and real-time information about the battery's state of charge (SOC), making it an essential component for various battery-powered devices.

Key Features:

• 2S Battery Compatibility: Specifically designed for 2-cell Li-Po battery packs.
• Accurate SOC Measurement: Provides precise measurements of the battery's remaining capacity.
• Real-Time Monitoring: Offers real-time updates on the battery's state of charge.
• Visual Indicators: Features LED indicators or other visual cues to display the battery's charge level.
• Easy Integration: Simple to connect and use with your battery pack.
• Compact Design: Small and lightweight for easy integration into various projects.

Applications:

• Portable Electronics: Monitoring the battery life of devices like laptops, smartphones, and power banks.
• Electric Vehicles: Tracking the battery's remaining range in electric vehicles.
• Power Tools: Indicating the battery's charge level in cordless power tools.
• Medical Devices: Monitoring the battery status in portable medical equipment.
• DIY Projects: Incorporating battery level monitoring into custom-built devices.

DATA SHEET AND USECASE

Key Specification:

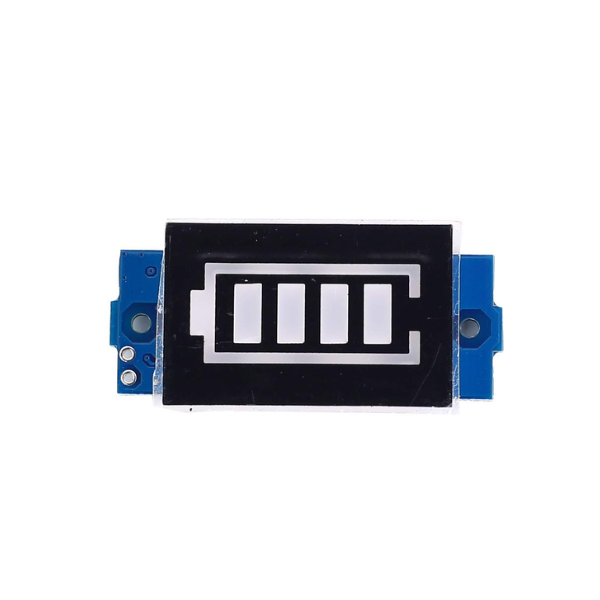

• Visual Display: The module features a digital display with a red outline and blue segments, indicating the battery's real-time charge status.

• Wide Compatibility: Suitable for various battery types, including nickel-metal hydride batteries, 18650 lithium-ion, polymer lithium battery packs, lead-acid storage batteries, and electric vehicle batteries.

• Reverse Polarity Protection: Equipped with reverse connection protection, ensuring the module remains undamaged if the input connections are reversed.
