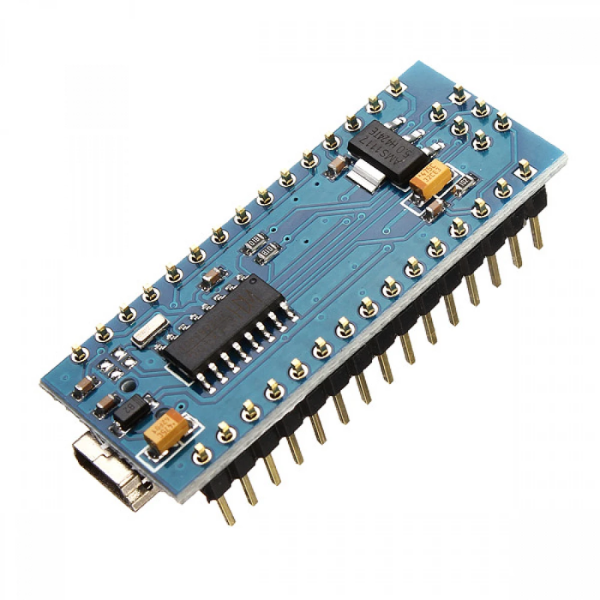

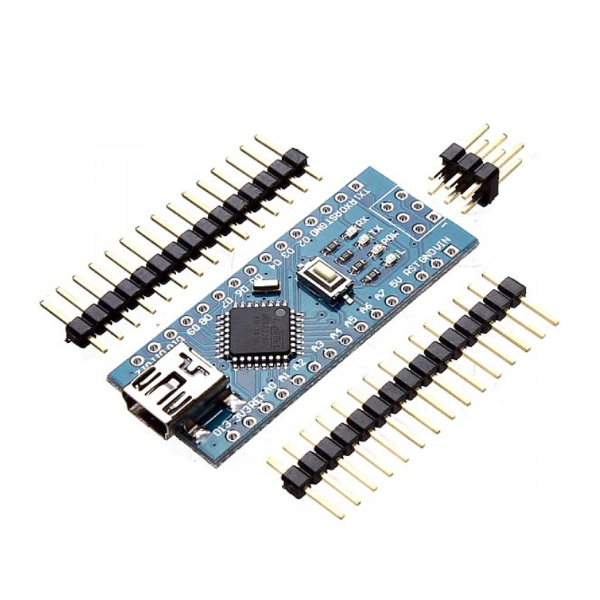

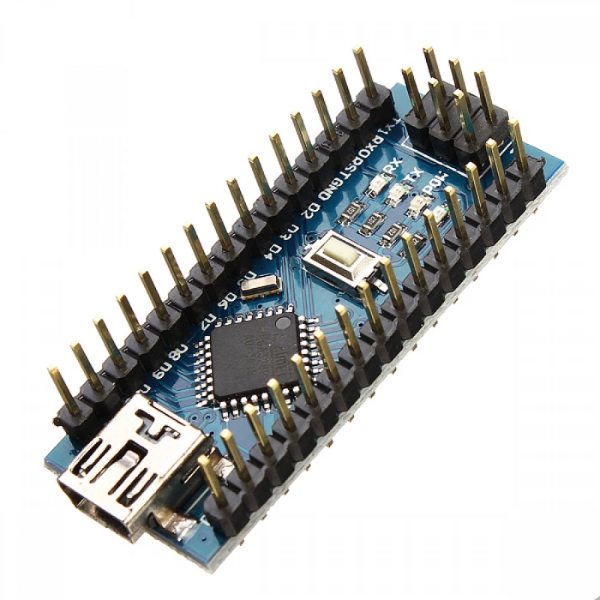

Arduino Nano R3 Board Unsoldered

The Arduino Nano R3 is a compact and versatile development board that offers a powerful platform for creating a wide range of electronic projects. It's based on the ATmega328P microcontroller and is fully compatible with the Arduino ecosystem.

Key Features:

• ATmega328P Microcontroller: Provides a powerful and energy-efficient processing unit.
• USB Connectivity: Easily program and power the board using a USB cable.
• 14 Digital I/O Pins: Can be used for input and output purposes, such as controlling LEDs, motors, or sensors.
• 6 Analog Inputs: Ideal for measuring analog signals from sensors like potentiometers, temperature sensors, or light sensors.
• 16 MHz Crystal Oscillator: Ensures accurate timing and reliable operation.
• Reset Button: Manually restart the board if needed.
• Power Jack: Can be powered by a USB cable or an external power supply.
• Small Form Factor: Compact design makes it suitable for portable and space-constrained projects.

Applications:

• IoT Projects: Building connected devices for home automation, environmental monitoring, or industrial control.
• Wearable Electronics: Creating devices like smartwatches or fitness trackers.
• Robotics: Controlling robots or robotic arms.
• Educational Projects: Learning programming and electronics concepts.
• Hobby Projects: Building custom electronic devices and gadgets.
• Prototyping: Quickly testing and developing ideas for larger projects.

DATA SHEET AND USECASE

 Technical Specifications:

• Microcontroller: ATmega328P
• Operating Voltage: 5V
• Input Voltage (recommended): 7-12V
• Digital I/O Pins: 14 (6 provide PWM output)
• Analog Input Pins: 8
• DC Current per I/O Pin: 40 mA
• Flash Memory: 32 KB (2 KB used by bootloader)
• SRAM: 2 KB
• EEPROM: 1 KB
• Clock Speed: 16 MHz
