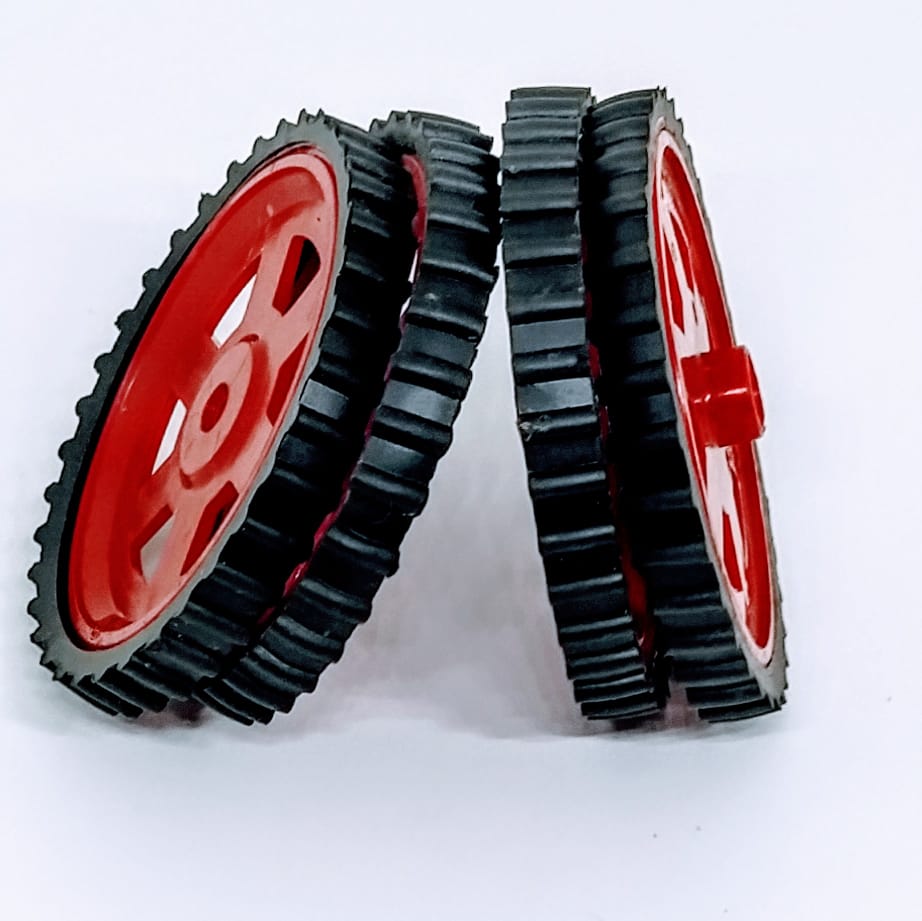

BO GEAR MOTOR WHEEL (Pack ok 2)

Description

A BO Gear Motor Wheel Pack of 5 contains five individual gear motor wheels, each consisting of a gear motor integrated into a wheel assembly. These units are commonly used in robotics and other applications where controlled movement is required.

Key Features

• Integrated Design: The gear motor and wheel are combined into a single unit for ease of integration and assembly.
• Geared Reduction: The gear motor provides a mechanical advantage, allowing for higher torque and lower speed output compared to a direct-drive motor.
• Wheel Assembly: The wheel is typically made of a durable material, such as plastic or metal, and may include features like treads or bearings for improved traction and efficiency.
• Various Sizes and Specifications: Available in different sizes and specifications to suit various applications and load requirements.
• Easy Installation: Designed for straightforward installation, often with mounting holes or other attachment mechanisms.

Applications

• Robotics: Used in various robotic platforms, including wheeled robots, rovers, and autonomous vehicles.
• Educational Projects: Suitable for educational robotics kits and projects, providing a convenient and easy-to-use motor-wheel combination.
• DIY Projects: Popular for DIY projects involving motorized vehicles or robots.
• Industrial Automation: Can be integrated into industrial automation systems for tasks that require controlled movement.
• Model Vehicles: Used in model vehicles, such as RC cars or boats, to provide propulsion.

DATA SHEET AND USECASE

Key Specifications:

• Operating Voltage: 3V to 12V DC
• Rated Speed: Varies by model; common speeds include 100 RPM, 150 RPM, and 300 RPM
• Torque: Approximately 0.35 kg-cm at 300 RPM
• Shaft Type: Single or dual shaft options
• Gearbox: Plastic gears with gear ratios typically around 1:48 to 1:120
• Dimensions: Approximately 70mm x 35mm x 22mm
• Weight: Around 30 grams

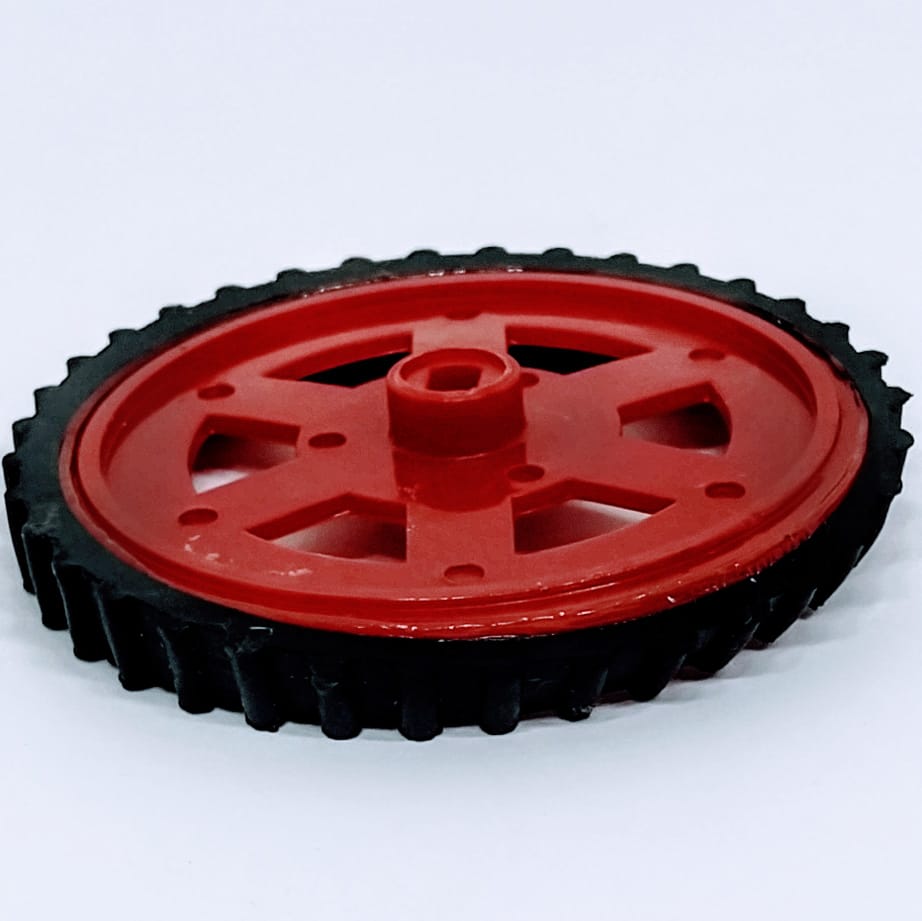

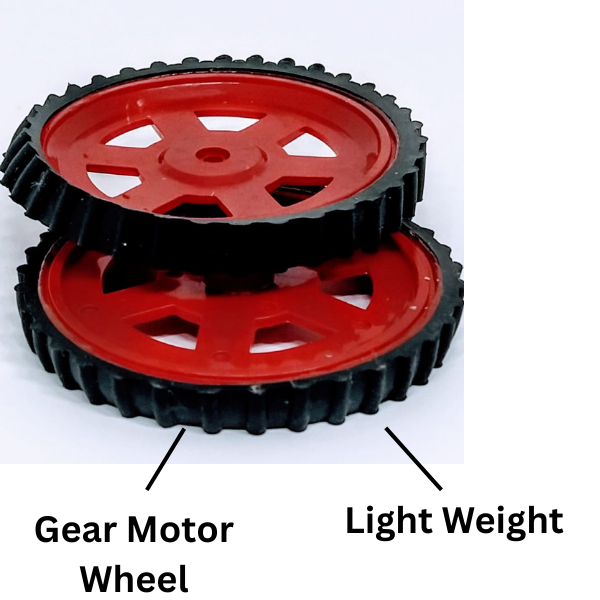

The accompanying wheels are designed to fit the motor's shaft and typically have:

• Diameter: Approximately 65mm to 70mm
• Width: Around 27mm
• Material: Plastic body with rubber grip for traction
• Shaft Hole Diameter: Approximately 5.4mm (round edge) and 3.5mm (flat edge)
