DHT11 With ESP01 Module for IOT & Smart Home (not Include wireless Module)

Description:

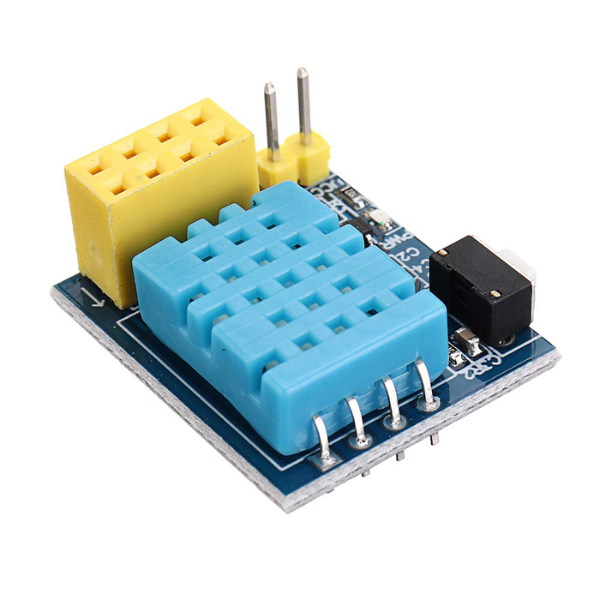

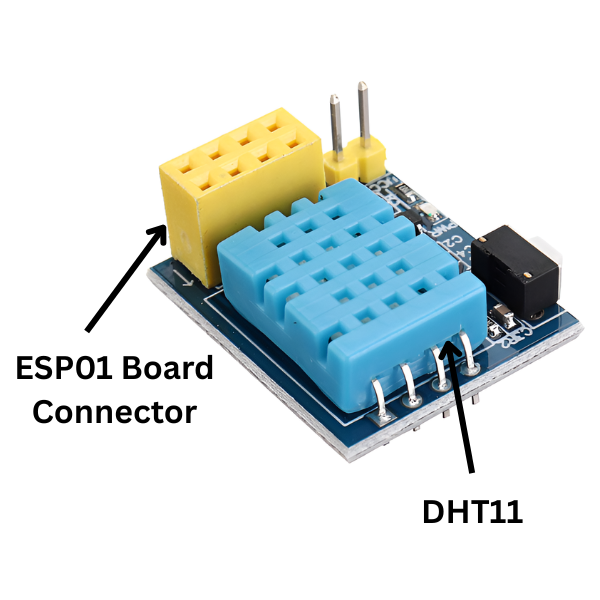

The DHT11 with ESP01 Module is a compact and cost-effective solution for measuring temperature and humidity. It combines the DHT11 sensor, a popular and widely used sensor for measuring temperature and relative humidity, with an ESP01 module, a development board based on the ESP8266 microcontroller. This combination allows for easy integration into various IoT and smart home projects.

Key Features:

• Temperature and Humidity Measurement: Accurately measures both temperature and relative humidity.
• ESP01 Module: Provides a powerful and versatile platform for data processing, control, and communication.
• Compact Size: Small and lightweight, making it suitable for space-constrained applications.
• Low Power Consumption: Consumes minimal power, making it ideal for battery-powered projects.
• Easy to Use: Simple to integrate and use with various microcontrollers and development boards.
• Cost-Effective: Affordable solution for both hobbyists and professionals.

Specifications:

• DHT11 Sensor:
  • Temperature Range: 0°C to 50°C
  • Humidity Range: 20% to 90% RH
  • Accuracy: ±2°C (temperature), ±5% RH (humidity)
• ESP01 Module:
  • Microcontroller: ESP8266
  • Operating Voltage: 3.3V
  • Flash Memory: 4MB

DATA SHEET AND USECASE

Key Specification:

• Power Supply: Supports a wide voltage range from 3.7V to 12V DC, allowing flexibility in power sources, including lithium batteries.

• Measurement Range:

  • Temperature: -20°C to 60°C
  • Humidity: 5% to 95% RH


• Measurement Accuracy:

  • Temperature: ±2°C
  • Humidity: ±5% RH



• Compact Design: The module's small footprint makes it suitable for integration into various projects without occupying significant space.
