Description-

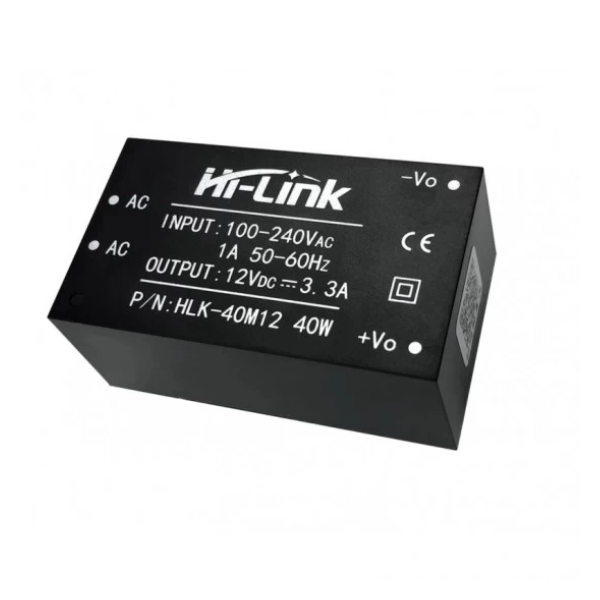

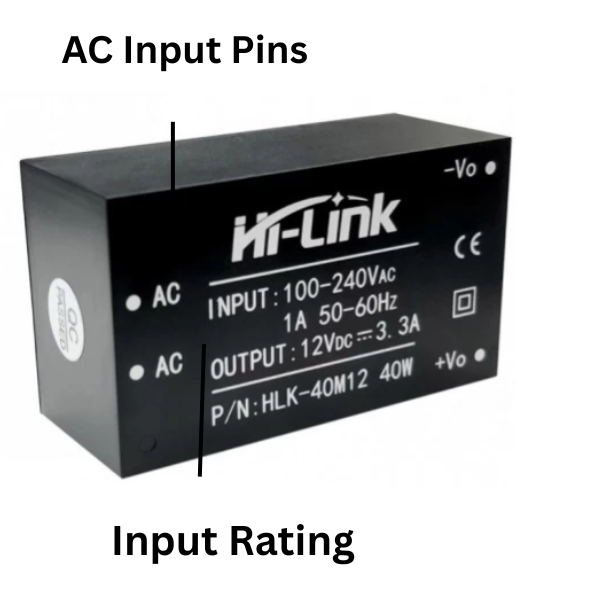

Hi Link HLK-40M12 12V/40W AC to DC Switch Power Supply Module is a plastic enclosed PCB mounted isolated power supply module. It can supply 12V DC from 90V AC to 265V AC and has a power rating of 40 Watt. This makes it perfect for small projects that need a 12 volt supply from mains. There are many advantages to these modules, such as low-temperature rise, low power, high efficiency, high reliability, high-security isolation, etc.
The 40W ultra-small series module power supply is a small-size, high-efficiency, power module designed by Hi-link Electronics for customers with advanced Gallium Nitride chipset. It has the advantages of global input voltage range, low temperature rise, low power consumption, high efficiency, high reliability, and high safety isolation. It has been widely used in smart home, automation control, communication equipment, instrumentation and other industries
You do not have to worry about fluctuations in the voltage grid. It is designed to be mounted on the PCB and is the ideal solution to power pads that you take.
Features:
Global universal input voltage 90~265VAC
Input and output isolation withstand voltage 3000VAC
Low power consumption, environmental protection, no-load loss < 0.1W
Can work without peripheral circuits
High reliability, long life design, continuous working time> 100,000 hours
Good output short circuit and over current protection and self-recovery
International standard pin, PCB board in-line installation
Potting and sealing with high-quality environmentally friendly waterproof thermal conductive glue, dustproof, moisture proof, shockproof and flame retardant
Meet UL/CE/EMC and safety testing requirements
Can be used in medical, industrial control, electric power, instrumentation, communication, railway and other fields
