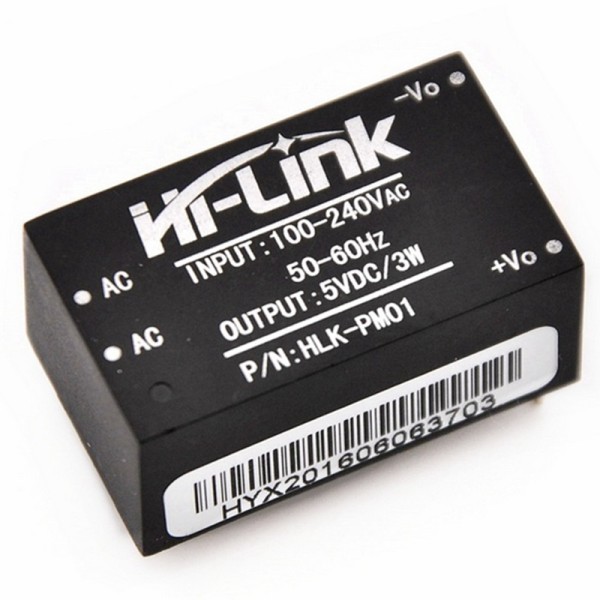

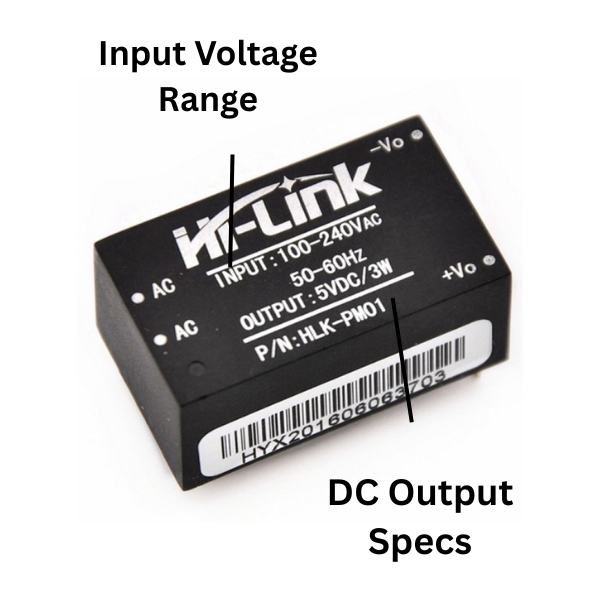

HLK-PM01 AC-DC 220V-5V STEP-DOWN POWER SUPPLY MODULE by hi- link

The HLK-PM01 is a compact and efficient AC-DC step-down power supply module from Hi-Link. It converts 220V AC input to a stable 5V DC output, ideal for powering various electronic devices and projects.

Key Features:

• Wide Input Voltage Range: Accepts 90V to 264V AC input, suitable for global use.
• High Efficiency: Converts AC to DC with minimal power loss, ensuring efficient energy utilization.
• Low Ripple and Noise: Provides clean and stable DC output, minimizing interference with sensitive electronics.
• Overload and Short Circuit Protection: Built-in safety mechanisms to protect the module and connected devices.
• Small and Compact: Its miniature size makes it easy to integrate into space-constrained projects.
• Reliable and Durable: Designed for long-term operation with high reliability.

Specifications:

• Input Voltage: 90V ~ 264V AC
• Output Voltage: 5V DC
• Output Current: 600mA
• Power: 3W
• Efficiency: Up to 70%
• Ripple and Noise: <100mVp-p
• Operating Temperature: -20°C to +60°C
• Dimensions: 33 x 19 x 15mm
• Certifications: UL, CE
