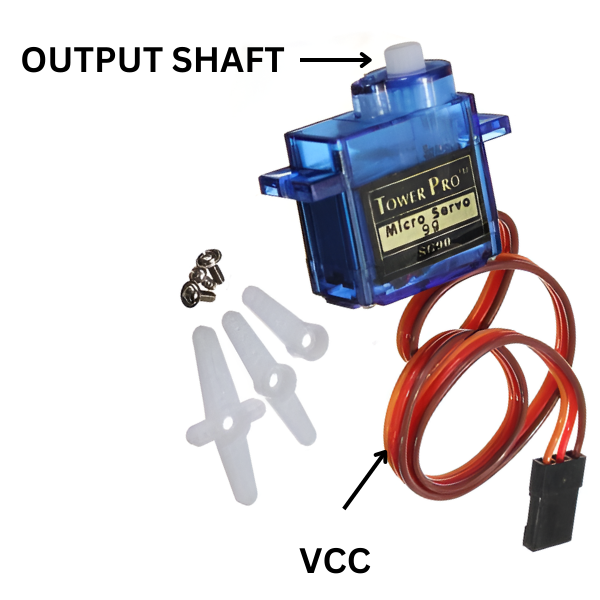

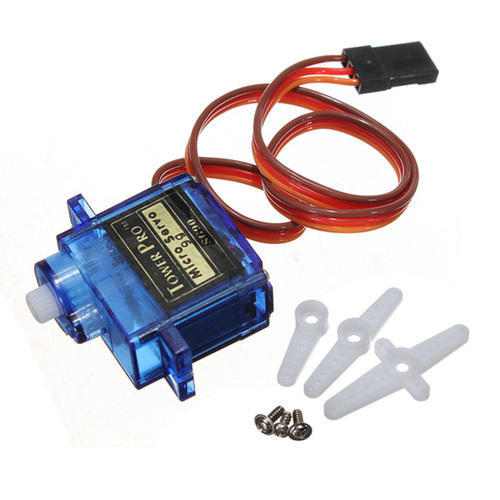

TOWER PRO 9G MICRO SERVO MOTOR

• Compact Size: Ideal for space-constrained projects.
• Lightweight: Weighing only 9 grams, it minimizes the load on your project.
• 180-Degree Rotation: Provides a wide range of motion.
• Moderate Torque: Sufficient for most small-scale applications.
• Standard Servo Connector: Compatible with most RC receivers and controllers.
• Durable Construction: Built to withstand the rigors of hobbyist use.

• Robotics: Used in robot arms, grippers, and other mechanisms.
• RC Vehicles: Controls steering, throttle, and other functions in RC cars, boats, and airplanes.
• DIY Projects: Powers various automated systems and gadgets.
• Educational Robotics Kits: A popular choice for learning electronics and programming.

DATA SHEET AND USECASE

Key Specification:

• Operating Voltage: 4.8V - 6V
• Stall Torque:
  • 1.8 kg/cm (at 4.8V)
  • 2.2 kg/cm (at 6V)
• Speed: 0.12 sec/60° (at 4.8V)
• Rotation Angle: 0° to 180°
• Weight: 9g
• Gear Type: Plastic
• Dimensions: 22.8 x 12.2 x 28.5 mm
• PWM Control Signal: 50Hz frequency
• Dead Band Width: 5µs
