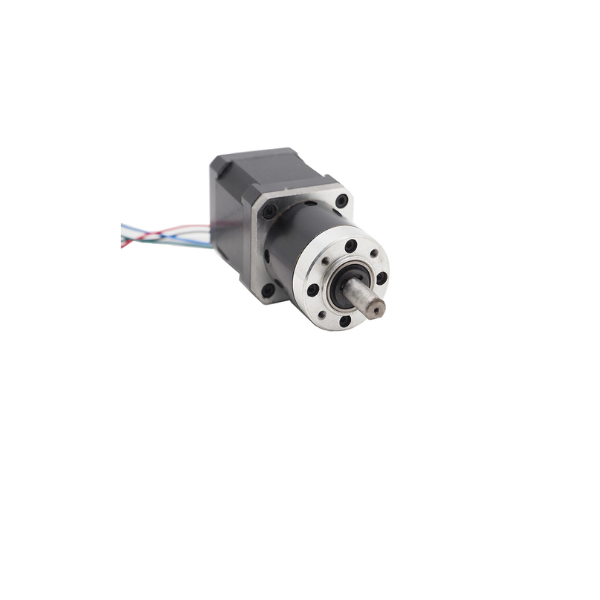

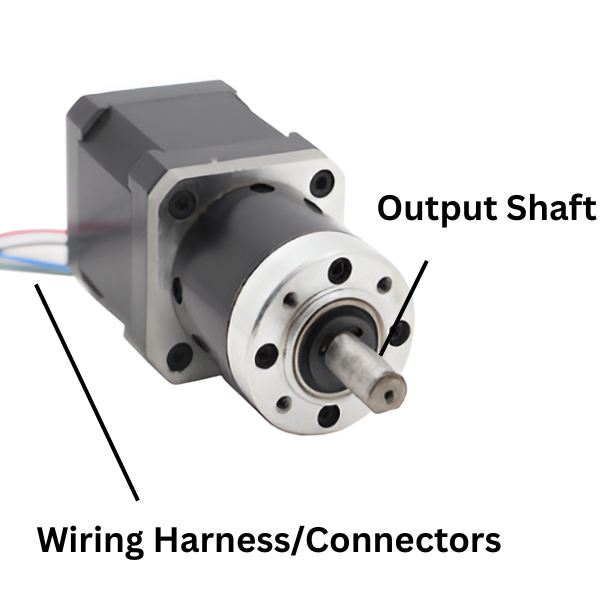

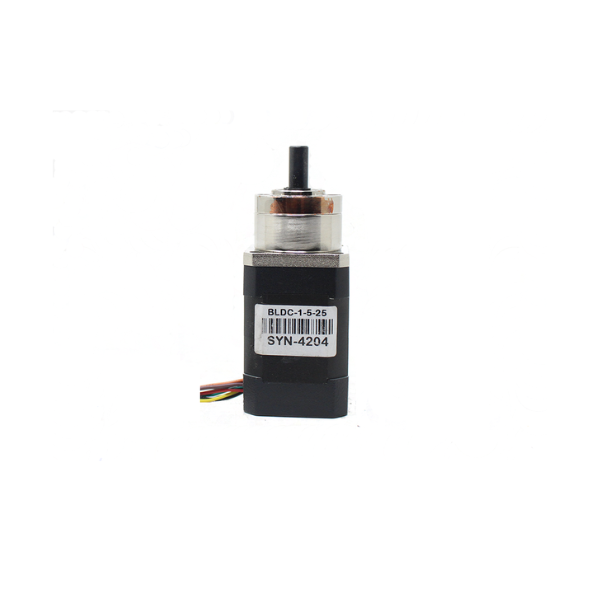

NEMA17 Planetary Geared BLDC Motor 50KGCM 50W Reduction Ratio 1:19

Description

This NEMA 17 planetary geared brushless DC (BLDC) motor is a compact and powerful motor designed for various applications requiring high torque and low speed. It features a planetary gearhead with a reduction ratio of 1:19, providing a significant increase in torque while reducing the motor's rotational speed. The motor is rated at 50W and delivers a peak torque of 50 kgcm.

Key Features

• High Torque: The planetary gearhead amplifies the motor's torque, making it suitable for applications requiring heavy loads.
• Low Speed: The reduction ratio lowers the motor's rotational speed, which is ideal for applications where precise control and reduced wear are essential.
• Efficiency: Planetary gearheads are known for their high efficiency, ensuring optimal power transmission.
• Compact Size: The NEMA 17 form factor makes this motor suitable for space-constrained applications.
• Brushless Design: BLDC motors offer superior efficiency, longer lifespan, and reduced noise compared to brushed DC motors.

Applications

• Robotics: Joint actuation, grippers, and manipulators
• Automation: Assembly lines, material handling, and packaging equipment
• Medical Devices: Prosthetic limbs, surgical equipment, and diagnostic tools
• Security Systems: Access control, surveillance cameras, and door locks
• Consumer Electronics: Smart home devices, gaming peripherals, and fitness equipment

DATA SHEET AND USECASE

Technical Specifications:

• Rated Voltage: 24V DC
• Rated Torque: 0.125 Nm
• Peak Torque: 0.4 Nm
• Rated Speed: 4000 RPM
• No-Load Speed: 5000 RPM
• Gearbox Reduction Ratio: 1:19
• Rated Load: 2 Nm
• Maximum Load: 5 Nm
• Efficiency: 85%
• Protection Grade: IP65
• Lubrication: Grease
• Noise Level: ≤ 45 dB
• Return Difference (Backlash): ≤ 60 arcmin
• Weight: Approximately 205 grams
