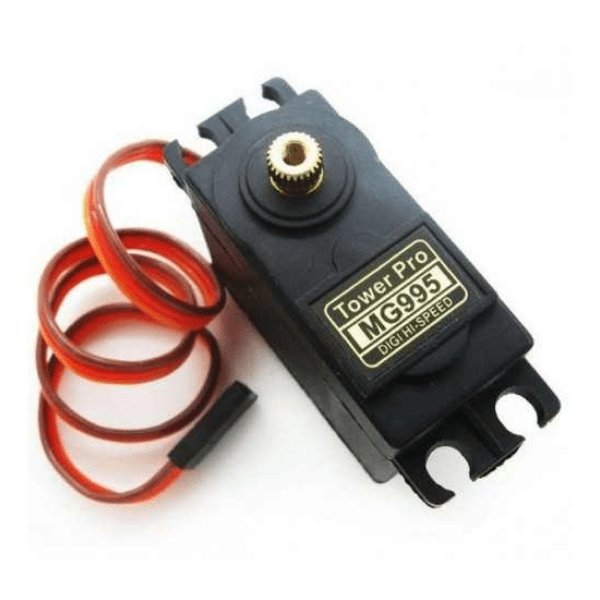

Tower Pro MG995 Metal Gear Servo Motor (180 Degree Rotation)

Description:

The Tower Pro MG995 is a popular and affordable servo motor widely used in robotics, RC models, and DIY electronics projects. It's a small, self-contained unit that combines a DC motor, a gearbox, and a control circuit. "Metal gear" indicates that the gears within the servo's gearbox are made of metal, providing increased durability and resistance to wear compared to plastic gears. "180-degree rotation" refers to the range of motion the output shaft can achieve.

Key Features:

• Metal Gears: Offers higher durability and resistance to stripping compared to plastic gears. This is important for applications where the servo might experience some resistance or load.
• High Torque: The MG995 provides a decent amount of torque for its size, making it suitable for various applications.
• 180-Degree Rotation: Provides a wide range of motion, allowing for precise positioning.
• Compact Size: Small and lightweight, making it easy to integrate into projects.
• Easy to Control: Controlled using standard servo signals (PWM) commonly available on microcontrollers like Arduino.
• Affordable: Relatively inexpensive, making it accessible for hobbyists and makers.

Applications:

• Robotics: Controlling robotic arms, legs, grippers, and other joints.
• RC Models: Steering control for cars, airplanes, and boats.
• DIY Projects: Building animatronics, automated systems, and other mechanisms requiring precise positioning.
• Industrial Automation: Used in some basic positioning and control systems.

Specifications:

• Operating Voltage: 4.8V - 6V DC (Typically 5V)
• Operating Speed: 0.17 sec/60 degrees (at 4.8V), 0.13 sec/60 degrees (at 6V)
• Stall Torque: 10 kg-cm (at 4.8V), 12 kg-cm (at 6V)
• Operating Angle: 180 degrees
• Gear Type: Metal
• Dead Band Width: 5 µs
• Dimensions: 40.7 x 19.7 x 42.9 mm
• Weight: Approximately 55g
• Connector: Standard 3-wire servo connector
