TowerPro MG945 Digital High Speed Servo Motor

Sold By

DSMElectro Solutions Private Limited

(1249 customer reviews)

Top Selling Products

Resistor SMD 1206 10K Pack 10

74% OFF

~~₹39~~ ₹11
Digital LED Temperature Controller XH-W3001 12V 120W

41% OFF

~~₹399~~ ₹236
LCD 16x2 Blue Display

40% OFF

~~₹199~~ ₹120
IR tracker sensor

54% OFF

~~₹99~~ ₹46
LiPo Rechargeable Battery High-Quality 3.7V 500mAh

57% OFF

~~₹599~~ ₹258
Relay Module 12V Single Channel

64% OFF

~~₹99~~ ₹37
NEMA17 Planetary Geared Hybrid Stepper Motor 25KGCM Reduction Ratio 1:5

25% OFF

~~₹4,999~~ ₹3,775
LiPo Rechargeable Battery High-Quality 3.7V 380 mAh

25% OFF

~~₹399~~ ₹300

Description Reviews

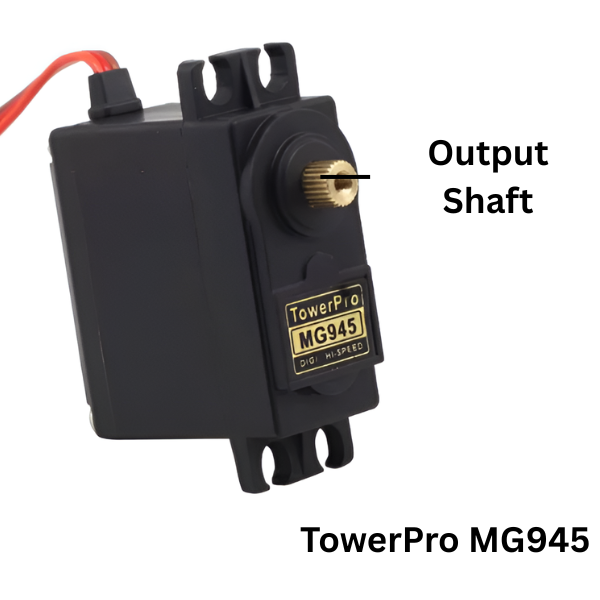

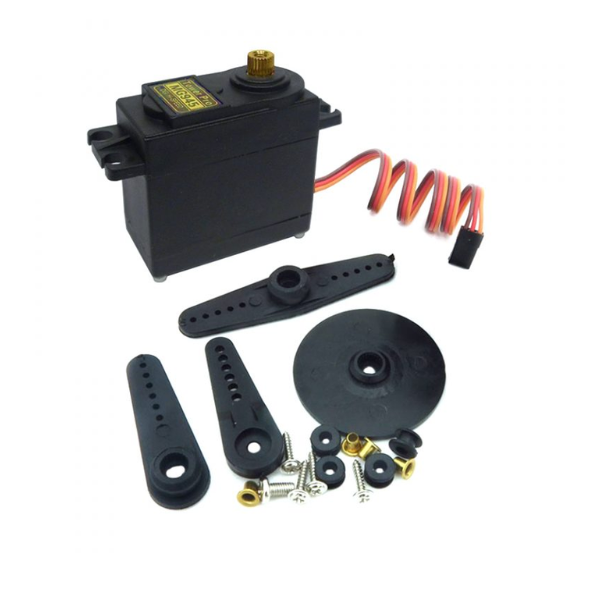

TowerPro MG945 Digital High Speed Servo Motor - Standard Quality

Description:

The TowerPro MG945 is a popular and affordable digital servo motor known for its high speed and decent torque. It's a versatile component widely used in various robotics, RC, and DIY projects. This standard quality version offers a good balance of performance and price.

Key Features:

Digital Control: Provides for precise and responsive position control.
High Speed: Offers fast movement, making it suitable for applications requiring quick reactions.
Metal Gears: Enhance durability and strength compared to plastic gears.
Compact Size: Allows for easy integration into various projects.
Affordable: Offers a cost-effective solution for many hobbyists and makers.

Specifications:

Operating Voltage: 4.8V - 6.6V
Speed:
0.23 sec/60 degrees (4.8V)
0.20 sec/60 degrees (6V)
Dimensions: 40.7 x 19.7 x 42.9 mm

DATA SHEET AND USECASE

Specifications:

Weight: 55g
Dimensions: 40.7 × 19.7 × 42.9 mm
Stall Torque:
- 10 kg·cm at 4.8V
- 12 kg·cm at 6V
Operating Speed:
- 0.23 s/60° at 4.8V
- 0.20 s/60° at 6V
Operating Voltage: 4.8V to 6V
Gear Type: Metal gears
Motor Type: Digital
Rotation Angle: Standard 180°; some models offer 360° continuous rotation
Connector Type: Universal "S" type compatible with most receivers, including Futaba and JR
