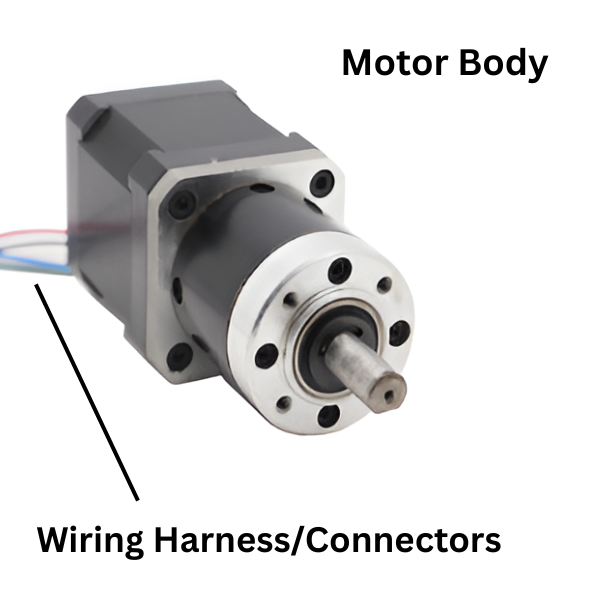

NEMA17 Planetary Geared BLDC Motor 25KGCM 50W Reduction Ratio 1:5

Description

This NEMA17 Planetary Geared BLDC Motor is a compact and powerful motor designed for various applications requiring precise and controlled motion. It features a planetary gearhead with a reduction ratio of 1:5, providing increased torque and reduced speed. The motor is equipped with high-quality bearings for smooth operation and long service life.

Key Features

• NEMA 17 Frame Size: Compact and versatile design for various applications.
• Planetary Gearhead: Provides high torque and reduced speed for precise control.
• Reduction Ratio 1:5: Increases torque output while reducing speed.
• BLDC Motor Technology: Efficient and quiet operation with minimal maintenance.
• High-Quality Bearings: Ensures smooth and reliable performance.
• Customizable Options: Available with different voltage ratings, torque outputs, and speed specifications.

Applications

This NEMA17 Planetary Geared BLDC Motor is suitable for a wide range of applications, including:

• Robotics: Joint actuators, manipulator arms, and robotic platforms.
• Automation: Assembly lines, material handling systems, and packaging machines.
• Medical Equipment: Medical devices, prosthetics, and rehabilitation equipment.
• 3D Printers: Z-axis positioning and other motion control components.
• Security Systems: Access control systems, surveillance cameras, and door locks.

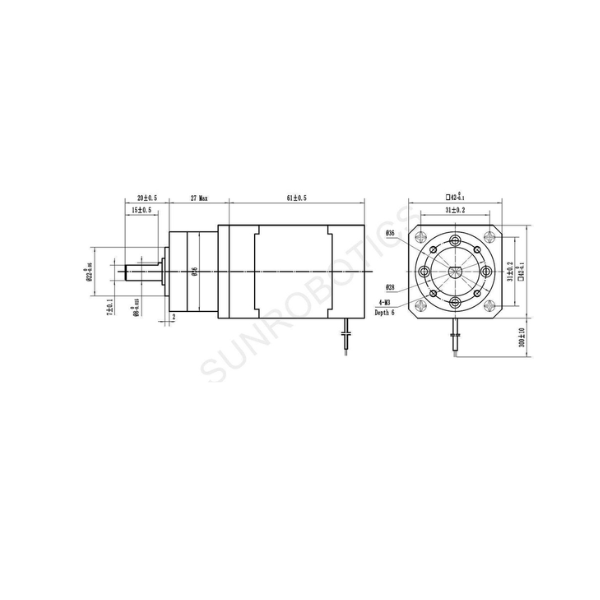

DATA SHEET AND USECASE

Technical Specifications:

• Rated Voltage: 24V DC
• Rated Torque: 0.125 Nm
• Peak Torque: 0.4 Nm
• Rated Speed: 4000 RPM
• No-Load Speed: 5000 RPM
• Gear Ratio: 1:5.18
• Gearbox Length: 27 mm
• Efficiency: 93%
• Rated Load: 1 Nm
• Maximum Load: 2.5 Nm
• Protection Grade: IP65
• Lubrication: Grease
• Noise Level: ≤ 45 dB
