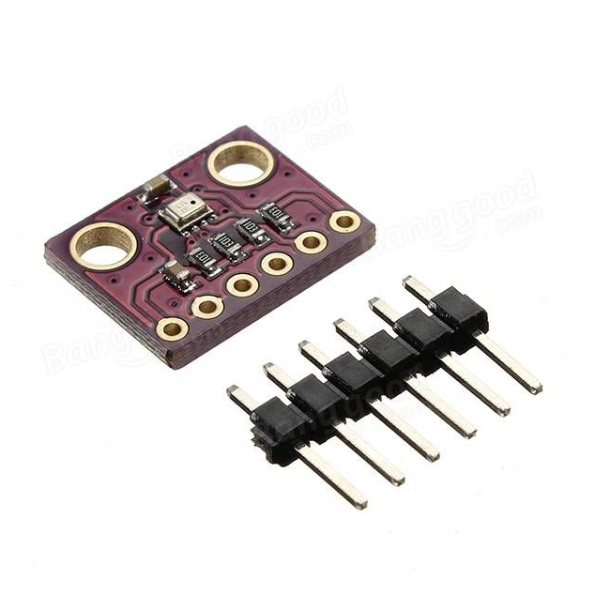

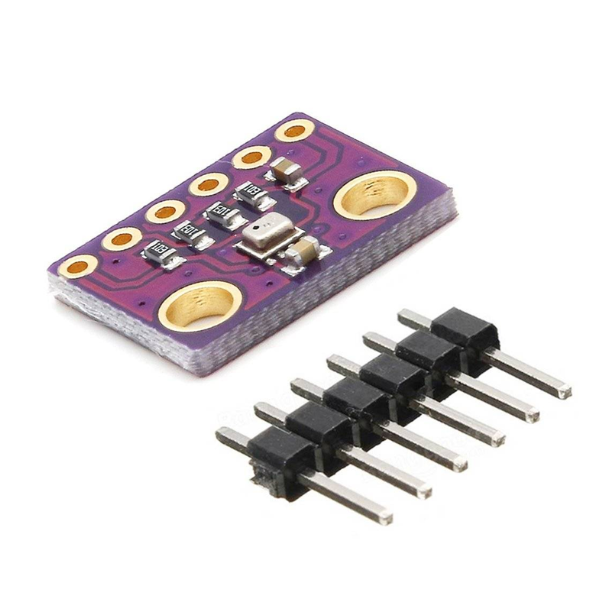

BMP280 Pressure Sensor Module

The BMP280 Pressure Sensor Module is a highly accurate and low-power device designed to measure atmospheric pressure and temperature. It offers a wide measurement range, high resolution, and fast response time, making it suitable for various applications.

Key Features:

• Pressure Measurement: Measures atmospheric pressure with high precision and accuracy.
• Temperature Measurement: Simultaneously measures temperature for comprehensive environmental data.
• Wide Measurement Range: Capable of measuring pressure from 300 to 1150 hPa.
• High Resolution: Offers fine-grained pressure and temperature measurements.
• Low Power Consumption: Optimized for low-power applications, such as battery-powered devices.
• I2C Interface: Communicates with microcontrollers and other devices using the I2C protocol.
• Small Form Factor: Compact design for easy integration into various projects.

Applications:

• Weather Stations: Measuring atmospheric pressure and temperature for weather forecasting.
• Altitude Measurement: Determining altitude based on pressure readings.
• Indoor Air Quality Monitoring: Assessing air quality by monitoring pressure and temperature.
• Industrial Automation: Monitoring environmental conditions in industrial processes.
• Scientific Research: Conducting experiments and data collection in various fields.

DATA SHEET AND USECASE

Key Specification:

• Pressure Measurement Range: 300 hPa to 1100 hPa
• Temperature Measurement Range: -40°C to +85°C
• Relative Accuracy: ±0.12 hPa (equivalent to ±1 meter altitude difference)
• Low Power Consumption: 2.7 µA at 1 Hz
• Interface Support: I²C and SPI
• Package Dimensions: 2.0 × 2.5 mm² footprint with a height of 0.95 mm
