Multipurpose Easy Module shield V1

(0 Reviews)
Out of Stock

Category: Interface Module

SKU: 1755


MRP Price:
₹999 37% OFF
Discounted Price:
₹628 (Incl.GST)

Quantity:
(0 available)

Weight:
20 g

Total Price:
Bulk Order
Share:
Sold By
DSMElectro Solutions Private Limited
(1249 customer reviews)

The Multipurpose Easy Module Shield V1 is a versatile and user-friendly expansion board designed for the Arduino UNO and compatible boards. It offers a wide range of features and functionalities, making it a valuable tool for various electronic projects.

Key Features:

  • Breadboard: Provides a convenient area for prototyping and experimenting with different components.
  • Buzzer: Generates sound for alerts and notifications.
  • RGB LED: Displays various colors and patterns.
  • Button: Allows for user input and interaction.
  • Jumper Pins: Provides flexibility for connecting different modules and components.
  • Power Supply: Offers power regulation and distribution for your project.
  • Grove Connectors: Compatible with Grove modules for easy expansion and customization.

Applications:

  • Robotics: Controlling motors, sensors, and actuators.
  • IoT Projects: Connecting devices to the internet for remote monitoring and control.
  • Educational Purposes: Learning about electronics and programming.
  • Hobby Projects: Creating custom gadgets and devices.

DATA SHEET AND USECASE

Key Features and Components:

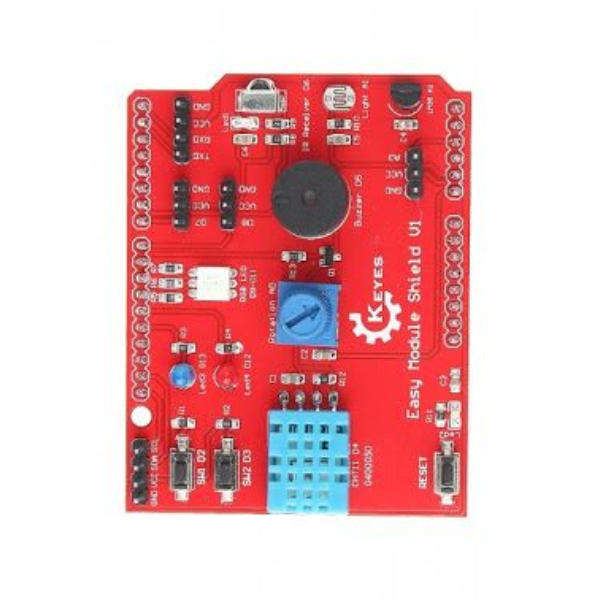

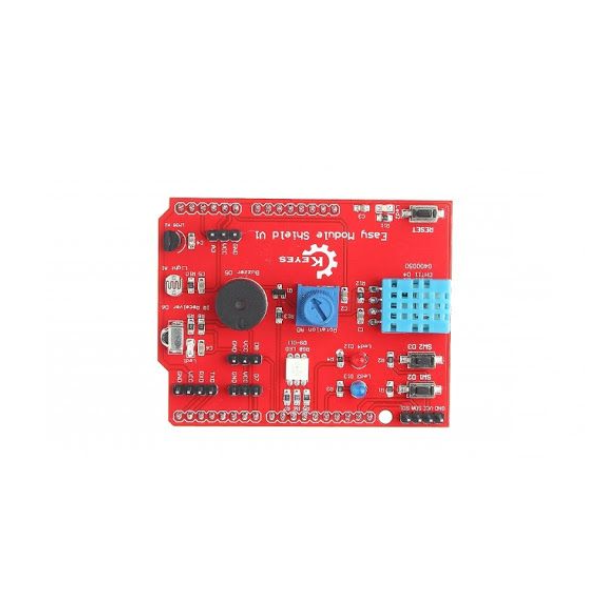

  • LED Indicators: Two LEDs connected to digital pins D12 and D13, useful for visual feedback in experiments.

  • Push Buttons: Two push buttons connected to digital pins D2 and D3, suitable for external interrupt experiments.

  • RGB LED: A common cathode RGB LED connected to pins D9 (Red), D10 (Green), and D11 (Blue), allowing color-mixing experiments.

  • Infrared (IR) Receiver: An IR receiver module connected to pin D6, enabling remote control experiments.

  • Light Dependent Resistor (LDR): Connected to analog pin A0, used to detect ambient light levels.

  • LM35 Temperature Sensor: Connected to analog pin A1, providing analog temperature readings.

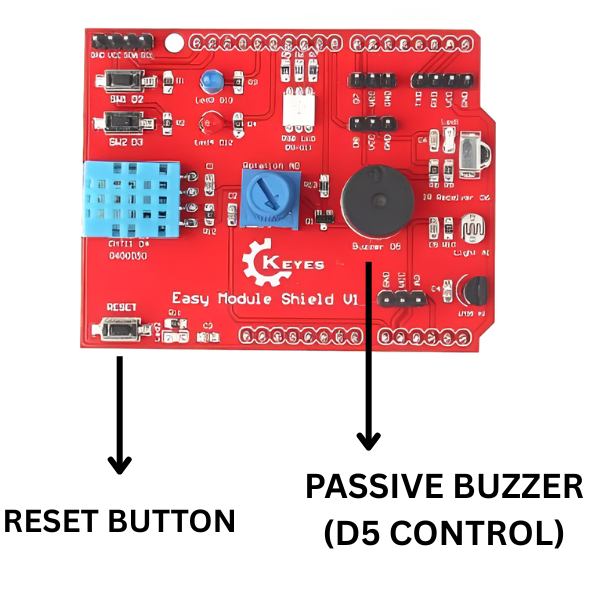

  • Passive Buzzer: Connected to pin D5, suitable for generating sound in experiments.

  • Potentiometer: Connected to analog pin A2, allowing variable resistance input for experiments.

  • DHT11 Temperature and Humidity Sensor: Connected to pin D4, offering digital readings of temperature and humidity.

  • Expansion Ports:

    • I2C Interface: Pins A4 (SDA) and A5 (SCL) for connecting I2C devices.
    • TTL Serial Port: Pins TXD and RXD for serial communication.
    • Additional Digital and Analog Ports: Pins D7, D8, and A3 for connecting other modules or sensors.
