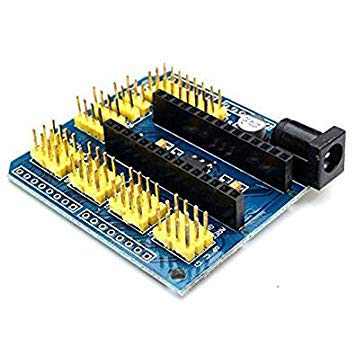

NANO v3 multi-function extension board for arduino nano

The NANO v3 Multi-Function Extension Board for Arduino Nano is a versatile and user-friendly expansion board designed to enhance the capabilities of your Arduino Nano microcontroller. It offers a wide range of features and functionalities, making it a valuable tool for various electronic projects.

Key Features:

• Breadboard: Provides a convenient area for prototyping and experimenting with different components.
• Buzzer: Generates sound for alerts and notifications.
• RGB LED: Displays various colors and patterns.
• Button: Allows for user input and interaction.
• Jumper Pins: Provides flexibility for connecting different modules and components.
• Power Supply: Offers power regulation and distribution for your project.
• Grove Connectors: Compatible with Grove modules for easy expansion and customization.

Applications:

• Robotics: Controlling motors, sensors, and actuators.
• IoT Projects: Connecting devices to the internet for remote monitoring and control.
• Educational Purposes: Learning about electronics and programming.
• Hobby Projects: Creating custom gadgets and devices.

DATA SHEET AND USECASE

Key Specification:

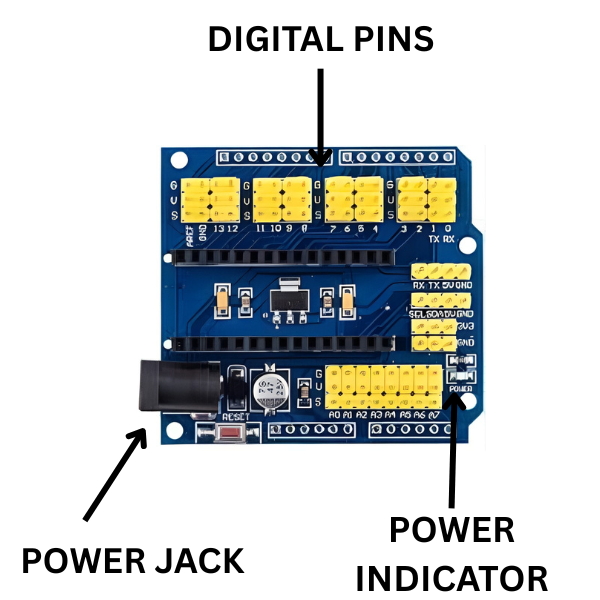

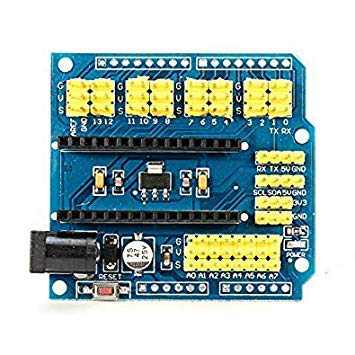

• Expanded Pin Access: Breaks out all 14 digital I/O pins and 8 analog input pins to headers, facilitating straightforward connections to sensors and modules.

• Power Options:

  • Onboard Voltage Regulators: Includes both 5V and 3.3V regulators, offering stable power supplies for various components.
  • Multiple Power Outputs: Provides additional 5V and 3.3V pins, along with multiple GND pins, to accommodate various peripherals.
  • DC Power Input: Features a DC barrel jack input with reverse polarity protection, supporting a wide input voltage range of 7V to 24V.


• Communication Interfaces:

  • I2C Expansion: Dedicated 4-pin header (SCL, SDA, 5V, GND) for easy connection of I2C devices.
  • UART Expansion: 4-pin header (RX, TX, 5V, GND) for serial communication.

• Additional Features:

  • Breadboard Compatibility: Provides a convenient area for prototyping and experimenting with circuits.
  • Reset Button: Onboard reset button for easy resetting of the Arduino Nano.
  • Compatibility: Supports both Arduino Nano V2.x and V3.x versions.
