HLK-10M12L AC to DC 10 Watt 5 Volt Power Module

Description:

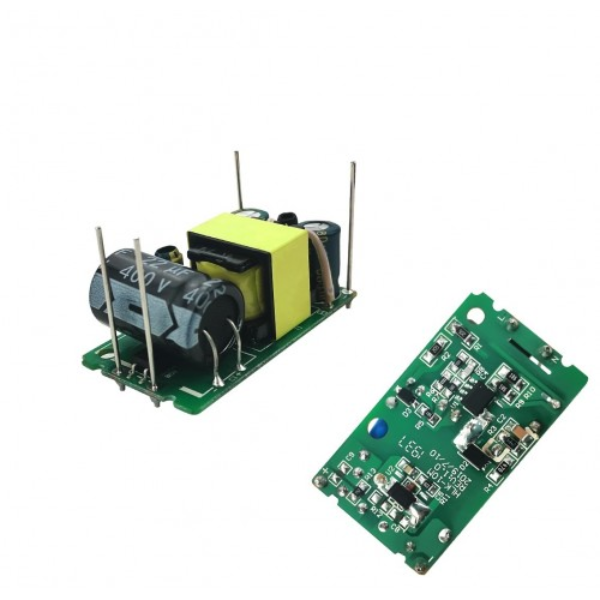

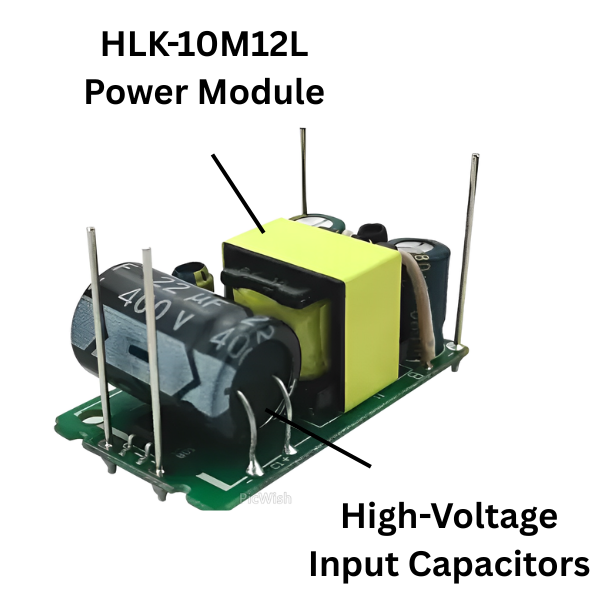

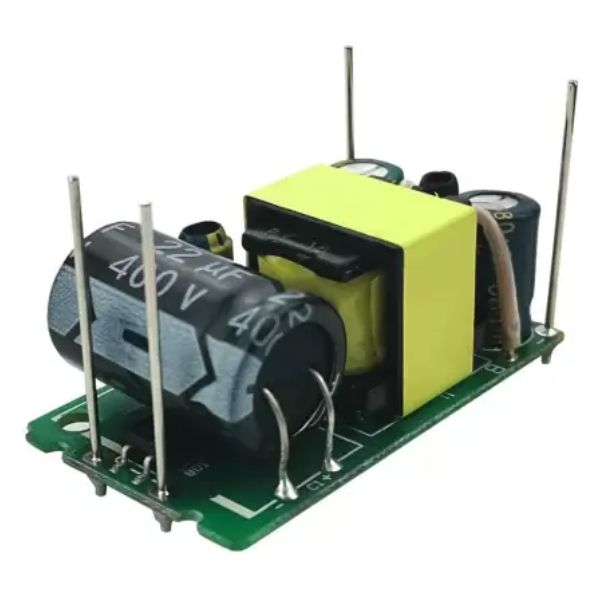

Introducing the Open Frame HLK-10M12L Ac-Dc Converter by Hi-Link, a powerful and efficient solution. This open-frame design seamlessly converts AC to DC. And also deliver a stable 12V output with a power rating of 10 watts and 0.8A. Crafted for reliability and ease of integration. This HLK-10M12L 12V 10W Ac-Dc Module is also a best choice for electronic applications need precision and efficiency. The Hi-Link 100-240V to 12V 10W Ac-Dc Isolated Converter, Open Frame HLK-10M12L, stands out with its open-frame design, offering flexibility for installation and integration into various electronic projects.

Features

• Open Frame Design: The HLK-10M12L Ac-Dc Converter also features an open-frame design.
• Isolated Module: Enhanced safety is achieved with an isolated design, safeguarding sensitive electronic devices against electrical interference for optimal performance.
• 12V Output Voltage: Delivering a stable 12V output, the HLK-10M12L meets the power requirements of various electronic applications, ensuring consistent and reliable performance.
• 10W Output Power: Optimized for efficiency, the HLK-10M12L provides a reliable 10 watts of power.
• Wide Input Voltage Range: With compatibility ranging from 100V to 240V this open frame HLK-10M12L ensures versatility and ease of integration, making it suitable for global use.

Specification

• Model - Open Frame HLK-10M12L
• Output Voltage -12V
• Output Power -10W
• Output Current -0.8A
• Input Voltage Range -100V – 240V
• Isolation -Yes
• Efficiency - Upto 91%
• Operating Temperature Range -25°C to +70°C

DATA SHEET AND USECASE

Key Features:

• Wide Input Voltage Range: Operates efficiently with input voltages from 85V to 264V AC, accommodating global mains standards.

• High Efficiency: Designed for low power consumption with high efficiency, ensuring minimal energy loss during conversion.

• Compact Design: Its open-frame structure allows for easy integration into various electronic designs, especially where space is limited.

• Safety and Reliability: Features high-security isolation, over-current protection, and self-recovery capabilities, ensuring reliable performance in diverse applications.
