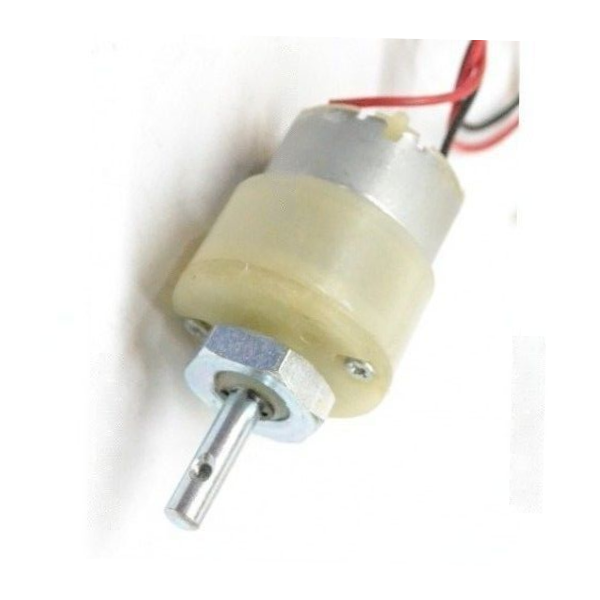

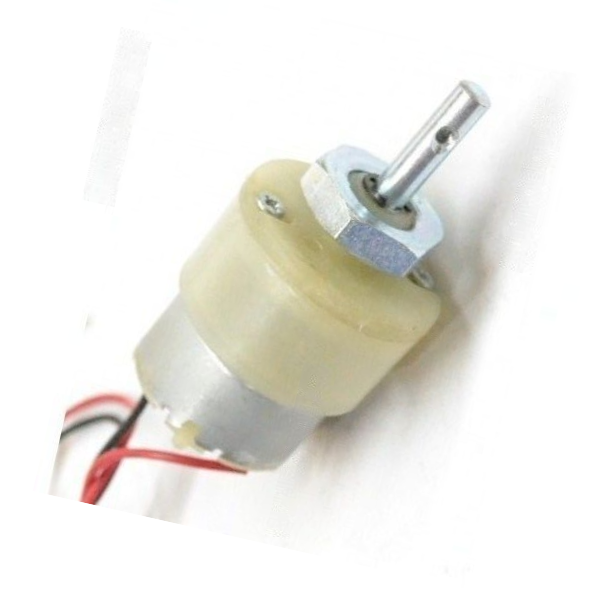

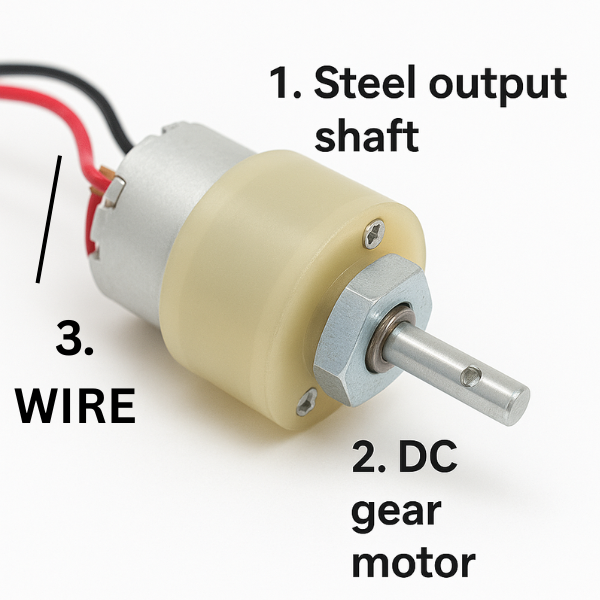

DC Gear Motor 12V 2000 RPM by Generic

Description:

A DC Gear Motor is a type of electric motor that combines a DC motor with a gearbox. The gearbox reduces the motor's speed while increasing its torque. This makes it suitable for applications that require high torque at lower speeds. The 12V 2000 RPM version operates at a nominal voltage of 12 volts and has a no-load speed of approximately 2000 revolutions per minute.

Key Features:

• High Torque: The gearbox significantly increases the motor's torque, making it ideal for driving heavy loads.
• Compact Size: DC Gear Motors are typically compact and lightweight, making them suitable for a wide range of applications.
• Versatility: Available in various voltages, speeds, and torque ratings to suit different needs.
• Reliability: Durable construction and robust design ensure long-lasting performance.
• Easy to Control: Can be easily controlled using electronic circuits and controllers.

Applications:

• Robotics: Used in various robotic applications, including robot arms, wheels, and manipulators.
• Automation: Employed in automated systems for tasks such as conveyor belts, assembly lines, and material handling.
• Toys and Hobbies: Commonly used in radio-controlled cars, boats, and airplanes.
• Home Appliances: Found in household appliances like blenders, mixers, and coffee grinders.
• Industrial Equipment: Used in various industrial machinery and equipment.

Specifications :

• Voltage: 12V DC
• No-Load Speed: 2000 RPM
• Torque: Varies depending on the specific model and gearbox ratio
• Current: Varies depending on the load and operating conditions
• Dimensions: Varies depending on the specific model

DATA SHEET AND USECASE

General Specifications:

• Operating Voltage: 12 V DC
• No-Load Speed: 2000 RPM
• Rated Torque: Approximately 1 kg-cm
• Stall Torque: Approximately 2.5 kg-cm
• No-Load Current: Around 60 mA
• Load Current: Up to 300 mA
• Shaft Diameter: Typically 6 mm
• Shaft Length: Approximately 22 mm
• Motor Dimensions: Length around 75 mm; Diameter approximately 36 mm
• Weight: Approximately 90 grams
