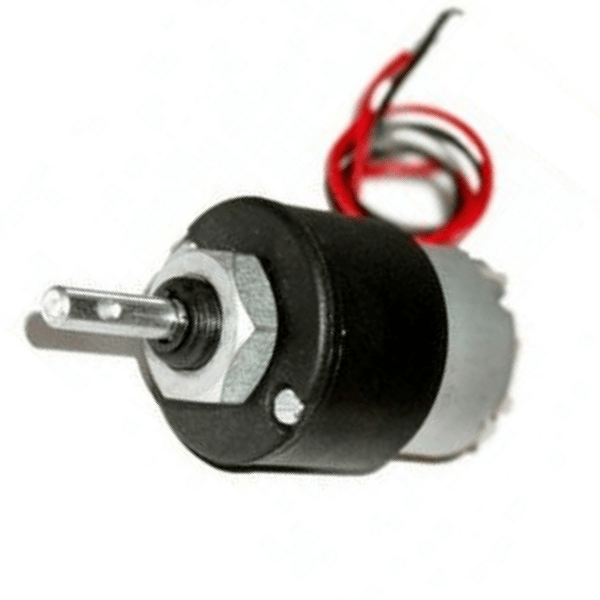

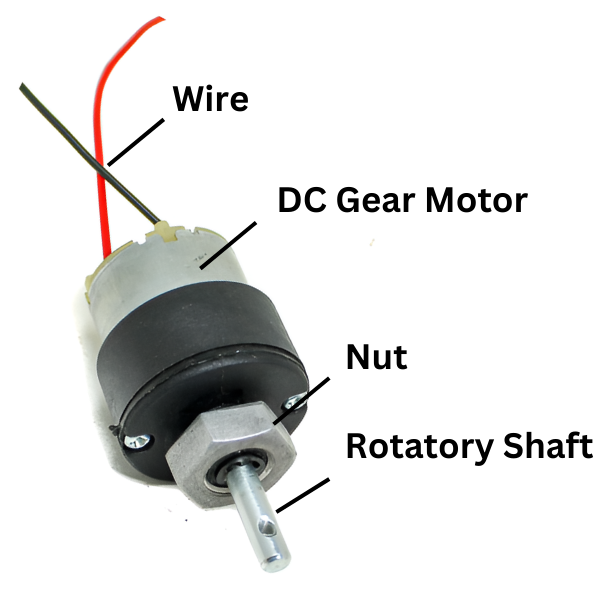

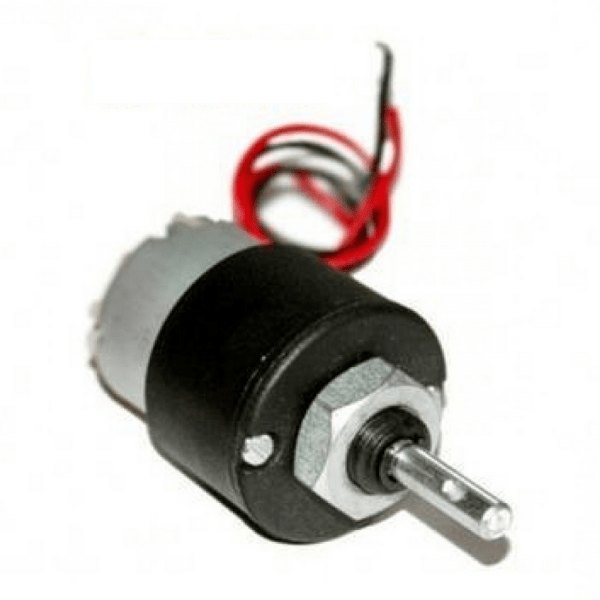

DC Metal Geared Motor 12V 200RPM

Powerful and Versatile: 200 RPM Center Shaft DC Geared Motor

Introducing our high-performance 200 RPM center shaft DC geared motor, designed to deliver exceptional power and reliability for your projects. With its durable construction and versatile features, this motor is ideal for a wide range of applications.

Key Features:

• Metal Gears: Ensure long-lasting performance and durability.
• Powerful Torque: Provides ample power for demanding tasks.
• Wide Operating Voltage Range: Runs smoothly from 4V to 12V for flexibility.
• Versatile Applications: Suitable for various projects, including robotics, automation, and DIY.
• Easy Integration: Features a shaft hole for convenient coupling with other components.
• Low Maintenance: Sealed and lubricated gearbox requires minimal maintenance.

Specifications:

• Rated Speed: 200 RPM at 12V
• Rated Torque: 1.5 kg-cm
• Stall Torque: 16 kg-cm
• Operating Voltage: 4V - 12V

Elevate your projects with our reliable and efficient DC geared motor.

DATA SHEET AND USECASE

Typical Specifications:

• Rated Voltage: 12V DC
• No-Load Speed: 200 RPM
• Stall Torque: Approximately 4.5 kg·cm
• Current Consumption: Varies by model; for instance, some models have a current rating of 1.42 A

• Gearbox: Metal gears for enhanced durability
• Shaft Diameter: Commonly 6 mm
• Dimensions: Varies by model; for example, some motors measure 81.6 mm in length and 37 mm in width
