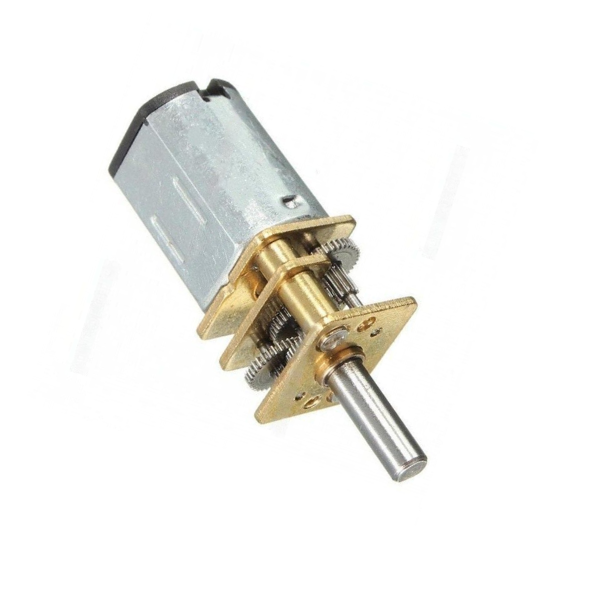

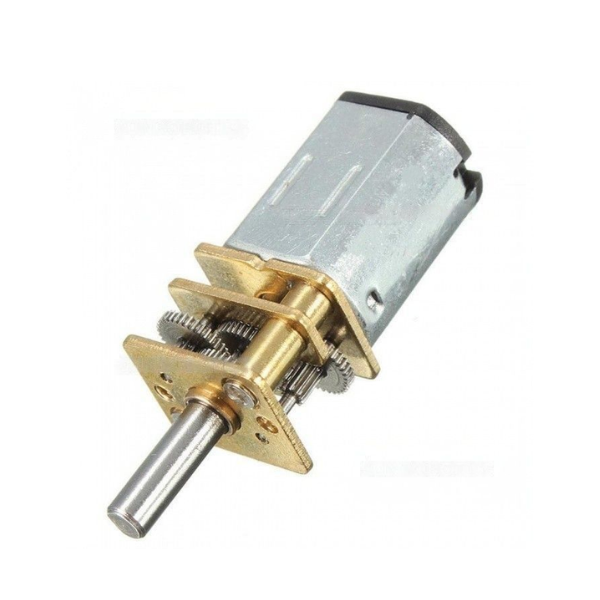

Micro Metal Gear Motor N20 6V 100RPM by Generic

• DIY projects: Ideal for various DIY projects, including robots, toys, and small machines
• Model making: Used in model airplanes, cars, and boats to power their motors
• Educational purposes: Demonstrating the principles of electric motors in classrooms and labs
• Industrial applications: Can be used in small-scale industrial applications, such as automation systems
• Consumer electronics: Integrated into various consumer products, such as toys and gadgets

DATA SHEET AND USECASE

Key Specification:

• Rated Voltage: 6V DC
• No-Load Speed: 100 RPM
• No-Load Current: Approximately 40 mA
• Stall Torque: Approximately 3.2 kg·cm
• Stall Current: Approximately 1A
• Gearbox Dimensions: 10 × 12 × 15 mm

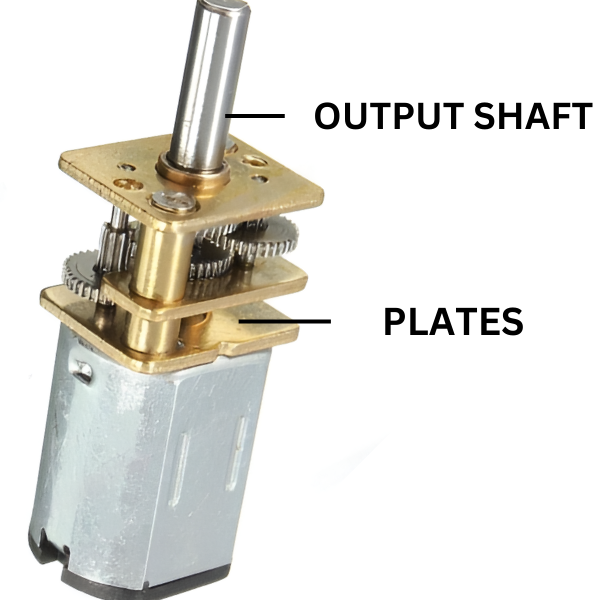

• Output Shaft: 3 mm diameter, D-shaped, 9 mm length
