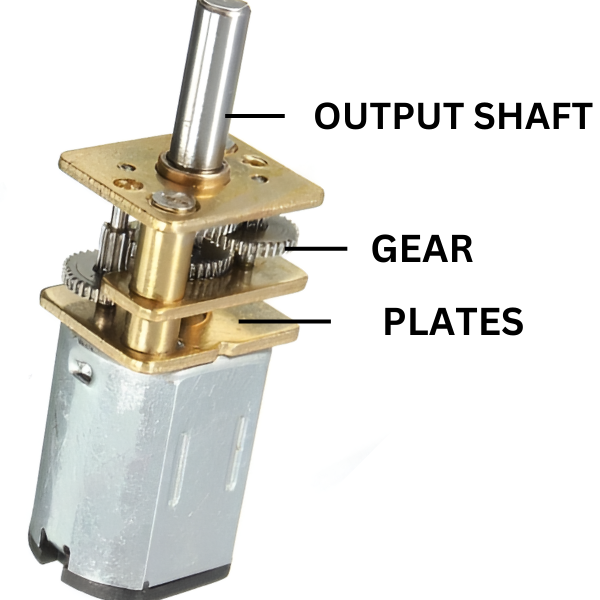

Micro Metal Gear Motor N20 12V100RPM by Generic

Power Up Your Mini Robots with the N20 Micro Gear Motor

Introducing our high-performance N20 micro gear motor, designed to deliver exceptional power and precision for your small-scale robotic projects. This compact and efficient motor is perfect for applications where size and torque are crucial.

Key Features:

• Lightweight Design: Ideal for miniaturized robots and devices.
• High Torque Output: Provides ample power for demanding tasks.
• Low RPM: Precise control for delicate movements.
• Durable Construction: Built to last with fine craftsmanship and sturdy materials.
• Excellent Stall Characteristics: Climbs hills and obstacles with ease.
• Easy Integration: Easily mount wheels or other components to the output shaft.

Applications:

• Miniature robots
• Automated systems
• DIY projects
• And more!

Elevate your robotic creations with the N20 micro gear motor.

DATA SHEET AND USECASE

Key Specification:

• Model: GA12-N20
• Rated Voltage: 12V DC
• No-Load Speed: 100 RPM
• No-Load Current: Approximately 60 mA
• Stall Current: Approximately 750 mA
• Rated Torque: 0.52 kg·cm
• Stall Torque: 1.8 kg·cm
• Gearbox Dimensions: 10 x 12 x 10 mm
• Shaft Type: D-shaped, 3 mm diameter, 9 mm length
• Weight: Approximately 12 grams
