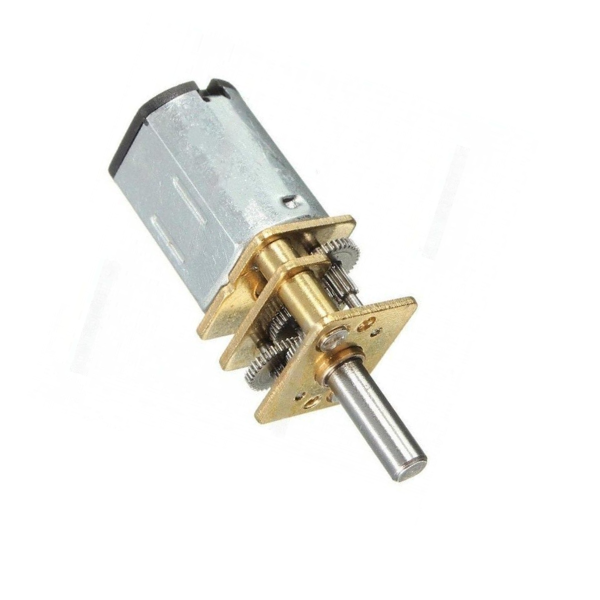

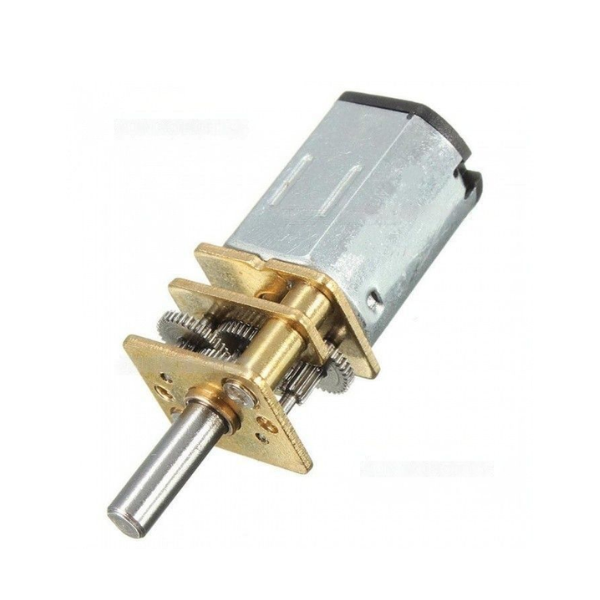

Micro Metal Gear Motor N20 12V 60RPM by Generic

Description:

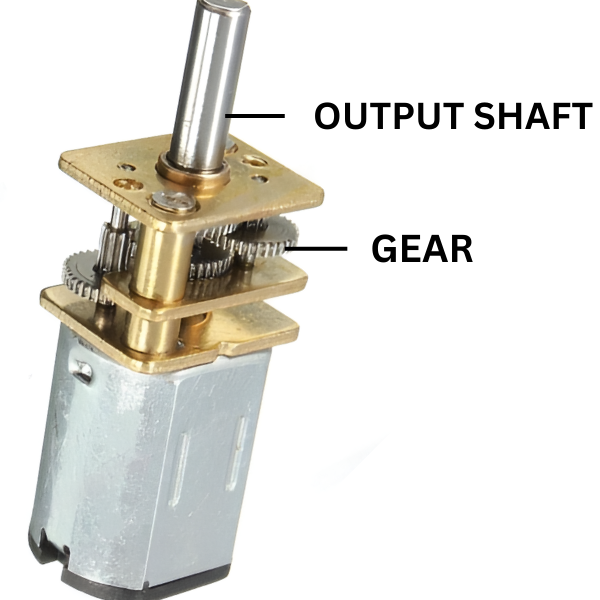

• This is a small, geared DC motor that utilizes a metal gearbox to increase torque and reduce speed. The "N20" designation refers to its compact size. The 12V and 60RPM specifications define its operating voltage and output speed. These motors are popular in robotics, DIY projects, and applications where space is limited.

Key Features:

• Compact Size: Ideal for space-constrained applications.
• Metal Gearbox: Provides increased torque and durability.
• Low RPM, High Torque: Suitable for applications requiring precise movement.
• Durable Construction: Built to withstand moderate loads.
• Versatile: Can be used in a wide range of applications.

Applications:

• Robotics
• DIY projects
• Smart cars
• Electronic locks
• Small automated devices
• Precision mechanisms
• Hobby projects

Specifications:

• Model: N20
• Voltage: 12V DC
• Speed: 60 RPM
• Gearbox: Metal
• Shaft Type: Typically D-type
• Shaft Diameter: Typically 3mm
• Motor Body Diameter: Approximately 12mm
• No-load current: varies, but generally very low.
• Stall current: varies, but significantly higher than no-load current.
• Torque: varies by manufacturer, but considered relatively high for its size.

DATA SHEET AND USECASE

Key Specification:

• Rated Voltage: 12V DC
• No-Load Speed: 60 RPM
• No-Load Current: 40 mA
• Loaded Speed: 40 RPM
• Loaded Current: 60 mA
• Rated Torque: 1.8 kg·cm
• Stall Torque: 11 kg·cm
• Stall Current: 400 mA
• Gear Ratio: 298:1
• Motor Dimensions: 12 mm diameter, 15 mm length
• Gearbox Dimensions: 10 mm length
• Output Shaft: 3 mm diameter, 10 mm length, D-shaped
• Weight: 12 grams
