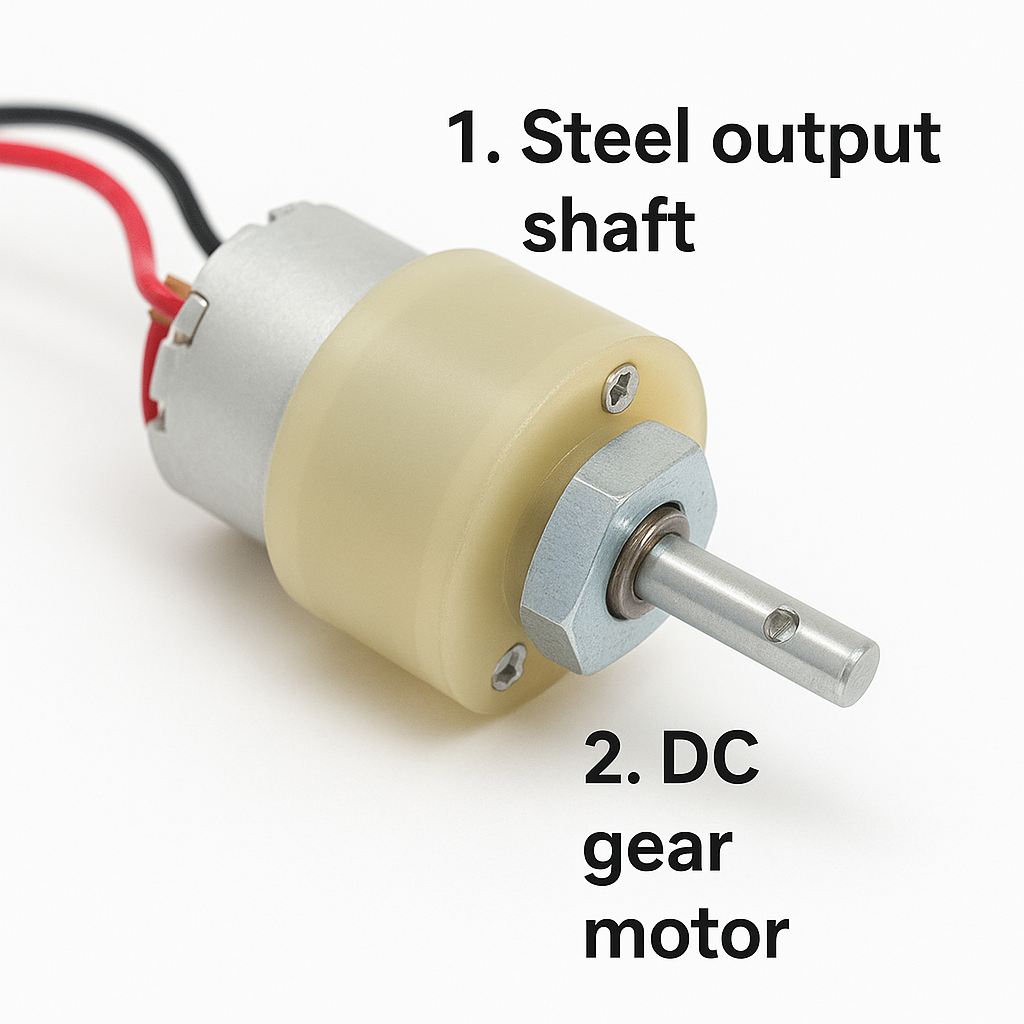

DC Gear Motor 12V, 45 RPM by Generic

Sold By

DSMElectro Solutions Private Limited

(1249 customer reviews)

Top Selling Products

Resistor SMD 1206 10K Pack 10

74% OFF

~~₹39~~ ₹11
Digital LED Temperature Controller XH-W3001 12V 120W

41% OFF

~~₹399~~ ₹236
LCD 16x2 Blue Display

40% OFF

~~₹199~~ ₹120
IR tracker sensor

54% OFF

~~₹99~~ ₹46
LiPo Rechargeable Battery High-Quality 3.7V 500mAh

57% OFF

~~₹599~~ ₹258
Relay Module 12V Single Channel

64% OFF

~~₹99~~ ₹37
NEMA17 Planetary Geared Hybrid Stepper Motor 25KGCM Reduction Ratio 1:5

25% OFF

~~₹4,999~~ ₹3,775
LiPo Rechargeable Battery High-Quality 3.7V 380 mAh

25% OFF

~~₹399~~ ₹300

Description Reviews

Description:

These standard size DC Motors are very easy to use. Also, you don’t have to spend a lot of money to control motors with an Arduino or compatible board. TheL298N H-bridge module with onboard voltage regulator motor driver can be used with this motor that has a voltage of between 5 and 35V DC. This DC Motor – 45RPM – 12Volts can be used in all-terrain robots and a variety of robotic applications. These motors have a 3 mm threaded drill hole in the middle of the shaft thus making it simple to connect it to the wheels or any other mechanical assembly. Nut and threads on the shaft to easily connect and internally threaded shaft for easily connecting it to the wheels

Features:

It comes with Good Quality Gears.
The metal gears have better wear and tear properties.
The gearbox is sealed and lubricated with lithium grease and requires no maintenance.
Although motor gives 45 RPM at 12V, the motor runs smoothly from 4V to 12V and gives the wide range of RPM, and torque.
The shaft has a hole for better coupling.

Package Includes:

1 x DC GEAR MOTOR 12V, 45 RPM by Generic

DATA SHEET AND USECASE

Key Specifications:

Voltage: 12 Volts DC
Speed: 45 RPM (no-load)
Torque: Varies depending on the design; for instance, some models offer up to 80 kg·cm
Current Consumption: No-load current is typically around 0.53A, with stall currents reaching up to 20A
Gearbox Type: Commonly planetary or spur gearboxes
Shaft Diameter: Varies; some models feature a 6mm diameter
Dimensions: Dimensions differ by model; for example, one model measures 73.7mm in length and 38mm in width and depth.

Download
