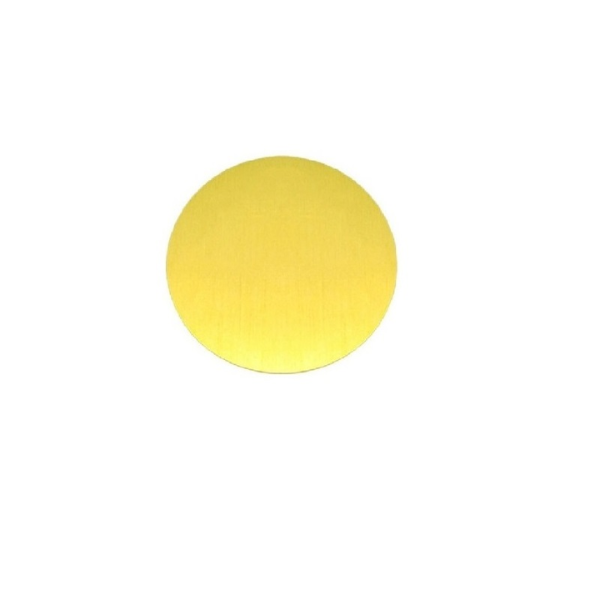

Piezoelectric sensor transducer 35mm dia

Description:-

The 35mm piezoelectric transducer sensor is a specialized device used for converting mechanical energy into electrical signals and vice versa. Its unique piezoelectric properties make it invaluable in various industries for sensing, actuation, and vibration analysis.

Features:-

Piezoelectric Material: The sensor is constructed using piezoelectric materials such as quartz, ceramic, or polyvinylidene fluoride (PVDF), which generate electrical charges in response to mechanical deformation.

High Sensitivity: It offers high sensitivity to mechanical vibrations and acoustic signals, making it suitable for precise sensing applications.

Wide Frequency Response: The sensor has a broad frequency response range, allowing it to detect a wide range of vibration frequencies.

Compact Size: Its compact and lightweight design enables easy integration into various systems and devices.

Durable Construction: The sensor is built to withstand harsh environmental conditions and mechanical stress, ensuring long-term reliability.

Specification:-

Resonance Frequency: 4.6 Khz +/- 0.5 kHz

Resonance Impedance: 200 Ohms

Capacitance: 20nF +/- 30% at 1 kHz

Operating Temperature -20 to +70 C

Storage Temperature -3 to +80 C

Metal Material Brass

Physical Attributes

Size: Approx. 35 x 35 x 0.5mm

Weight (gm): 12

Package Includes

1 x Piezoelectric Transducer Sensor 35mm
