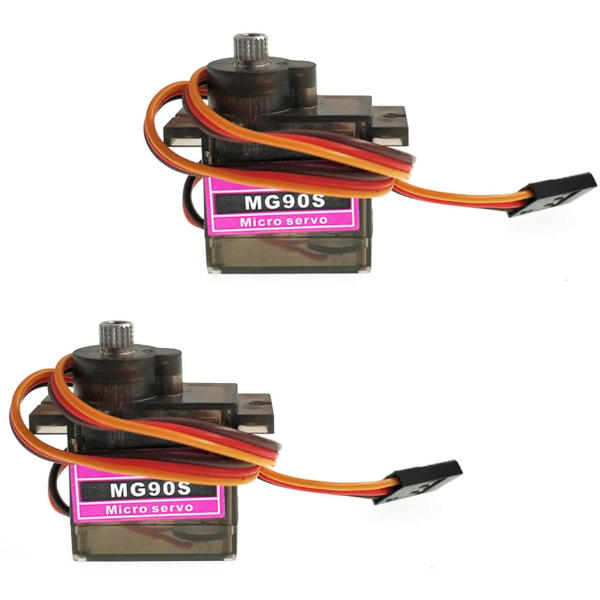

Tower Pro MG90S Metal Gear Micro Servo Motor

Power Up Your Projects with the Tower-Pro MG90S Mini Digital Servo Motor

Introducing the Tower-Pro MG90S, a versatile and affordable servo motor perfect for a wide range of applications. This compact and powerful servo offers precise control and reliable performance, making it an excellent choice for your robotics, RC projects, and more.

Key Features:

• 180° Rotation: Provides a full range of motion for precise control.
• High Resolution: Delivers accurate positioning for consistent performance.
• Fast Response Time: Offers quick and responsive adjustments.
• Constant Torque: Maintains consistent torque throughout the entire travel range.
• Strong Holding Power: Holds positions securely for stability.
• Compact Design: Small and lightweight for easy integration into your projects.

Applications:

• RC aircraft
• Robotics
• Automation
• DIY projects
• And more!

Elevate your projects with the Tower-Pro MG90S mini digital servo motor.

DATA SHEET AND USECASE

Key Specification:

• Operating Voltage: 4.8V – 6.0V
• Torque:
  • 1.8 kg·cm @ 4.8V
  • 2.2 kg·cm @ 6.0V
• Speed:
  • 0.10 sec/60° @ 4.8V
  • 0.08 sec/60° @ 6.0V
• Rotation Angle: 0° – 180°
• Dead Band Width: ≤5μs
• Operating Temperature: -30°C to +60°C
• Weight: 13.4g
• Gear Material: Metal
• Motor Type: Coreless

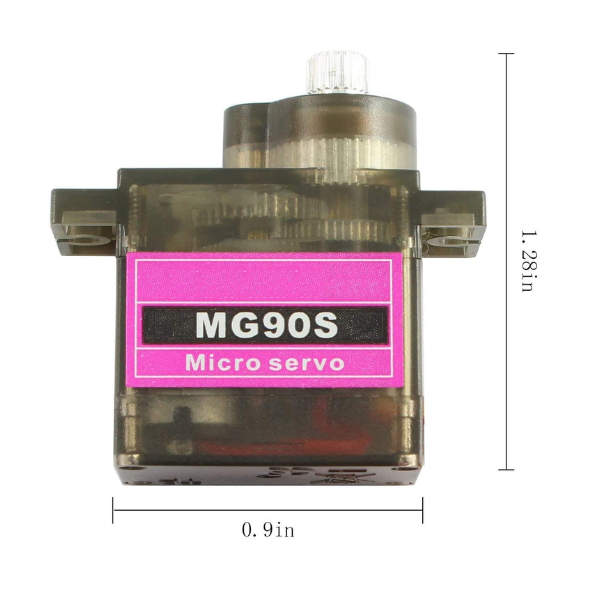

• Size: 22.8mm × 12.2mm × 28.5mm
